UCE-2315-HDM

UCE-2315-HDM Spec Sheet

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

DESCRIPTION

FEATURES

Caster
8" Casters
Construction
Stainless Steel / Non Insulated - Constructed of stainless steel, with welded base frame for added strength and durability
Door Count
2 Doors
Doors
Full Stainless Steel Door - Flush mounted, stainless steel insulated doors
Extra
Tamper Resistant Fasteners - Tamper resistant fasteners throughout
Correctional Warranty - One year parts, six months labor limited warranty
Handles
Recessed Tubular Push Pull Handle - Designed for ease of push / pull during transport and recessed for protection.
Heat System
Non Heated - Non Heated

OPTIONS & ACCESSORIES

Bumpers
Full Bumper - Heavy duty full perimeter bumper extends beyond doors and handles for added protection. The bumper is mounted to the base frame for added durability - the bumper is not used as the base frame. In this way, the bumper absorbs all the shock in transport, protecting the integrity of the construction.
Top Corner Bumpers - Top corner bumpers are a good option for those customers not needing the protection of a full bumper, but still require protection for walls and surrounding equipment.
Caster
6 Caster Configuration - 6 caster configuration increases the cabinets maneuverability, ideal for larger cabinets
All Swivel Casters - All swivel casters allow for greater maneuverability. Great for tight turns or severe corners (such as on and off trucks or narrow hallways).
A drawback to the all swivel configuration is that it is harder to control the direction of the equipment when rolled in a straight line.
Slides and Shelves
Custom Shelf Size and Spacing

SHORT FORM SPEC

Specified unit shall be FWE Model No. UCE-2315-HDM, Enclosed Correctional Utility Carts.

CONSTRUCTION. Heliarc welded construction of stainless steel. Welded tubular base frame shall be 1.5" square, heavy gauge stainless steel tubing, with 10-gauge stainless steel reinforcing stress plates at corners. 18 gauge stainless steel exterior.

CASTERS. 8" maintenance-free polyurethane tire casters in a configuration of two (2) rigid and two (2) swivel with brake. Casters shall have a reinforced yoke mounted to 10 gauge caster plate. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded-in-place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular frame of the unit.

PUSH BAR HANDLE. Heavy-duty 1" diameter tubular stainless steel push handles. Reinforced and welded with stainless steel channel to prevent removal.

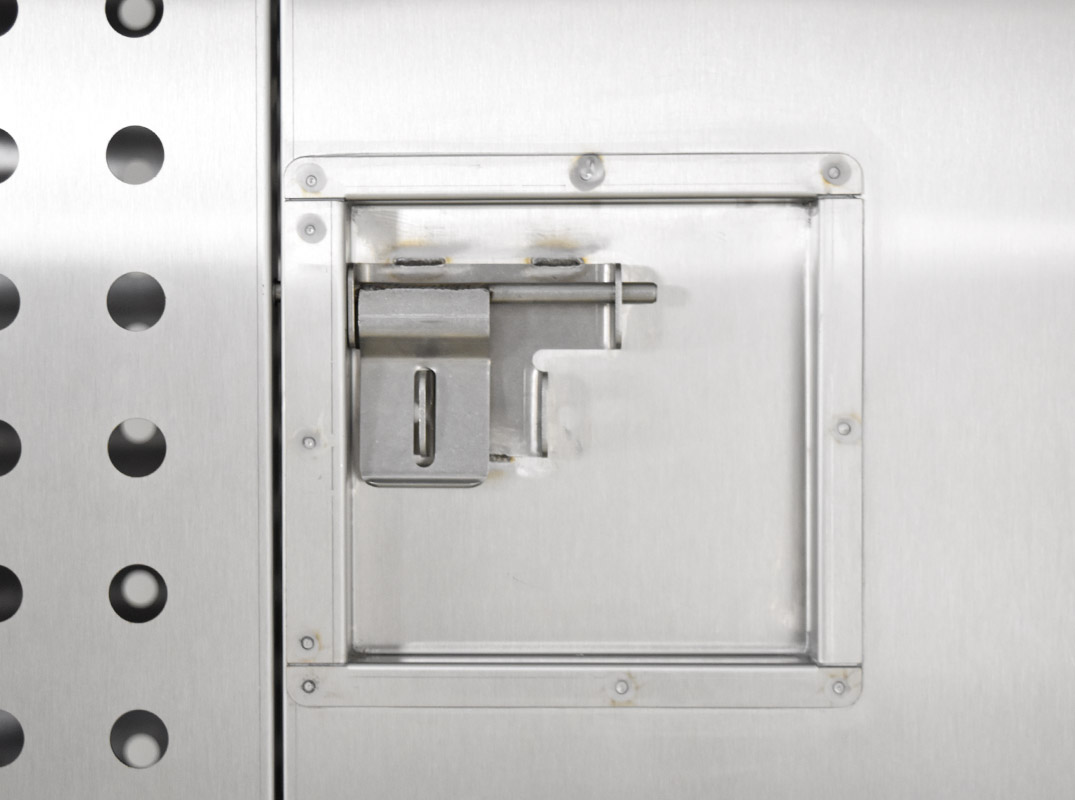

DOORS AND LATCHES. Flush mounted, stainless steel, gasketless door. Each door shall have three (3) non-removable heavy-duty, 12 gauge stainless steel hinges welded to cabinet body. Doors shall open a full 270°, to lay flat against sides of cabinet. Each door shall be equipped with non-removable maxi-guard slide latches, fully welded to cabinet frame, exterior access latch to be mounted within recessed panel and include 12 gauge swing down padlock plate.

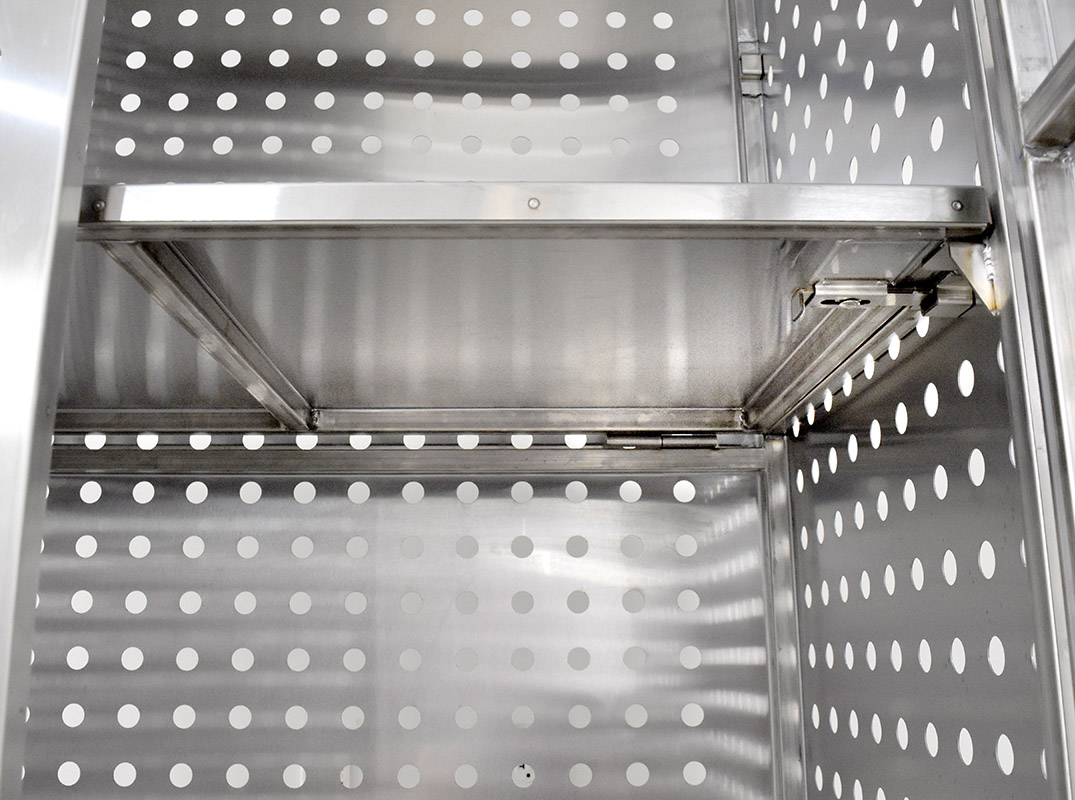

SHELVES. Shelf made of heavy-duty 16 gauge stainless steel. Underside of shelf shall be reinforced with 18 gauge stainless steel tubular frame, resting on 12 gauge welded shelf support brackets.

Provide with the following accessories:

LITERATURE

FWE products may be covered under one or more of the following U.S. patents: 288,299;238,300;3,952,609;4,192,991.
