UC-509-62

HEAVY-DUTY UTILITY CARTS
For Multi-Purpose Back-Up
"UC" and "UCU" Series

UC-509-62 Spec Sheet

These heavy-gauge stainless steel, super tough carts are built to store and transport heavy loads with ease

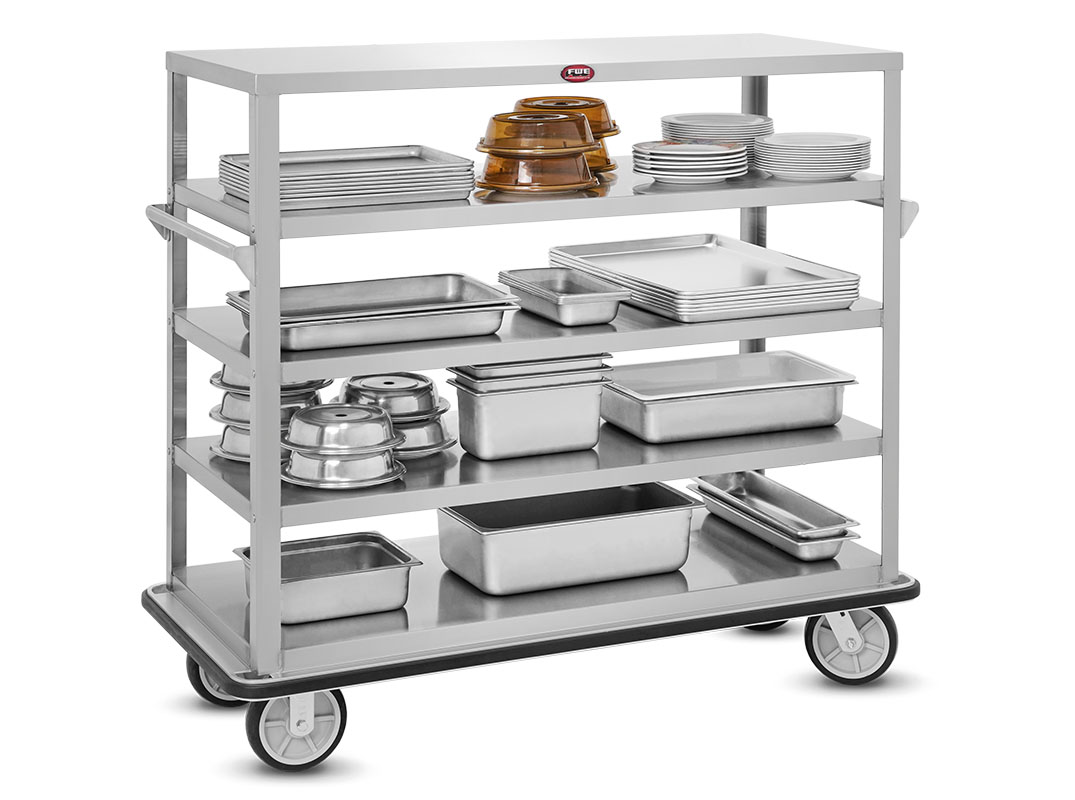

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

DESCRIPTION

Transport, serve, store or bus with FWE's super heavy-duty Queen Mary "UC Series" and "UCU Series" mobile utility carts. These rugged mobile back-up units are built incredibly tough - tough enough to safely take loads of up to 1600 lbs. Each reinforced stainless steel shelf has over 9.5 square feet of working space - enough to carry three large serving trays. Models are available with 3, 4, 5 or 6 (24" x 57") shelves, and can be ordered with edges flanged up or down.

FWE's utility carts are designed to last longer than any other - period! The UC-509 features welded construction and our exclusive tubular stainless steel base frame ensure that our carts will endure the most rigorous operations and environments. Durable stainless steel takes the abuse of transport applications and allows for sanitary maintenance. Super-duty 8" casters are mounted to reinforcement plates for added durability and take the impact over threshold. So when you need a utility cart that performs year after year, day-in and day-out, make your choice FWE. . . the "Choice of the Professionals".

FEATURES

Agency Approvals
NSF - NSF International (formerly known as the National Sanitation Foundation) is an independent, non-profit organization that certifies food service equipment and ensures it is designed and constructed in a way that promotes food safety. FWE products that meet these standards bear the NSF mark.
You may also see a designation that a product meets NSF/ANSI, which adds rules from the American National Standards Institute to the testing. ANSI works closely with NSF to develop its food safety standards and complete testing to those.
Bumpers
Full Bumper - Heavy duty full perimeter bumper extends beyond doors and handles for added protection. The bumper is mounted to the base frame for added durability - the bumper is not used as the base frame. In this way, the bumper absorbs all the shock in transport, protecting the integrity of the construction.
Caster
8" Casters
Mobile
Construction
Stainless Steel / Non Insulated - Constructed of stainless steel, with welded base frame for added strength and durability
Door Count
No Doors
Doors
No Doors - No doors - open storage
Handles
Tubular Push Handles - Heavy duty stainless steel push pull handles are secured to the unit with reinforced backing plate. Ergonomically designed to be easy on the hands
Heat System
Non Heated - Non Heated
Slides and Shelves
Fixed Shelves - Shelves are positioned into railings welded to body . Heavy-duty "no sag" shelves are removable to facilitate thorough cleaning

OPTIONS & ACCESSORIES

SHORT FORM SPEC

Specified unit shall be FWE Model No. UC-509-62, Heavy-Duty Utility Carts.

CONSTRUCTION. Heliarc welded construction of stainless steel. Welded tubular base frame shall be 1.5" square, heavy gauge stainless steel tubing, with 10-gauge stainless steel reinforcing stress plates at corners. Uprights shall be 10-gauge stainless steel.

BUMPER. Solid 1.5" wide continuous wraparound aluminum channel, bolted to frame, with snap-in, non-marking replaceable vinyl cushion. Full perimeter bumper extends beyond handles for added protection. Shall be continuous, with corner cut-outs to facilitate cleaning.

CASTERS. 8" Super-duty (extra-wide) polyurethane tire casters with Zerk grease (lubrication) fittings in a configuration of two (2) rigid, and two (2) swivel with brake. Casters shall have a reinforced yoke welded to 10-gauge caster mounting plate. The caster mounting plate shall be secured to a 10-gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular frame of the unit.

PUSH BARS. Two (2) heavy-duty, 1" diameter tubular stainless steel push handles welded in place.

SHELVES. Shelves shall be heavy-duty 16-gauge, type stainless steel, die-formed, welded to 10-gauge stainless steel corner angles. Underside of each shelf shall be reinforced with an extra heavy-gauge stainless steel channel. Each shelf shall be capable of carrying up to 200 lbs. of distributed load.

Provide with the following accessories:

LITERATURE

FWE products may be covered under one or more of the following U.S. patents: 288,299;238,300;3,952,609;4,192,991.
