SCB-8-HS

Mobile Bars
For Conventional Beverage Service Using Cans and Bottles, Includes Warm Water Hand Sink
"CB-HS" Series

SCB-8-HS Spec Sheet

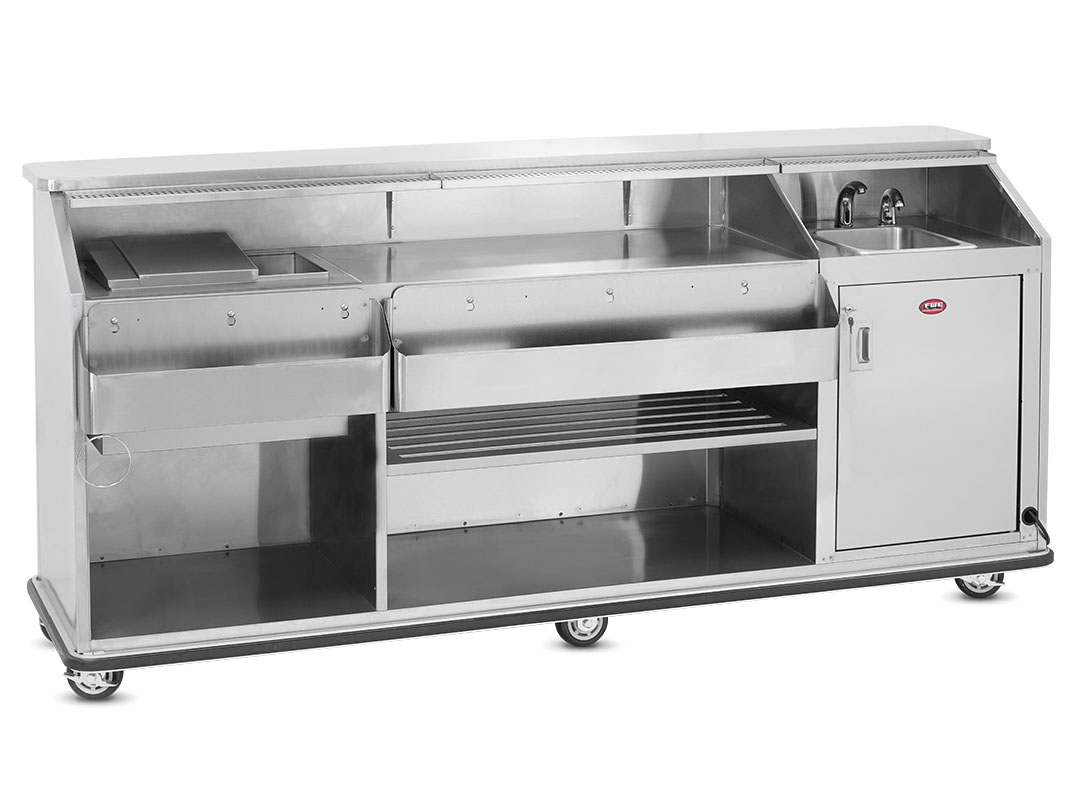

Portable bar designed for cans and bottles includes convenient built-in hand sink for sanitization and easy cleanup

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

DESCRIPTION

FWE manufactures tough, durable portable bars in a variety of decorative styles. These NSF certified portable bars allow for any type of beverage service needed; conventional bottles and cans, post-mix, pre-mix, and bag-n-box dispensing. With a variety of sizes, styles and matching ice carts and back bars FWE has what it takes to make beverage service a breeze.

The FWE Weather-All Series Bars are constructed entirely of stainless steel. These attractive and functional bars are tough enough to be used outside year-round and beautiful enough to grace the most elegant banquet hall. Neither high humidity nor inclement weather presents a problem to the versatile Weather-All bar. Because it is completely mobile on 5 inch diameter polyurethane tire casters, you can roll it to where the crowds (and profits) are, to save table service, labor costs, and provide faster service to the customer.

When your beverage service consists of cans and bottles, also referred to as conventional bar service, the SCB-8-HS is the perfect solution. For small volume operations, or when a dispensing system is not necessary, the SCB is a profitable solution. This mobile bar is more comfortable and practical for the bar tender than using a skirted banquet table for beverage service. The SCB series is also provided with a built in ice sink that holds 60lbs of ice. The stainless storage areas keep the cans and bottles easy to manage without frequent restocking. Also provided as standard options; speed rail to support bottles and prevent breakage, a 4 bowl server for drink garnishments and a convenient towel ring.

If your looking for a banquet bar, portable bar, bar and restaurant equipment, NSF certified bars, catering equipment, mobile bars, commercial bars, conventional bar, indoor/outdoor portable bar, dispensing bar, heavy duty bar, professional bar, whatever you call it, we have a solution for you.

Make your choice FWE... the "Choice of the Professionals".

FEATURES

OPTIONS & ACCESSORIES

Bars
Bar Top Custom - Custom laminates tops are available to enhance or match existing colors.
Locking Doors for Storage Area - Lockable doors prevents unauthorized access to storage areas for safety and security.
Stainless Steel Bar Gutters - Bar gutters conveniently store accidental spillage for easy cleaning.
Locking Bottle Speed Rail - Lockable 5" deep removable speed rail keeps bottles readily available for quick service.
Protective Storage Cover - Our custom protective storage covers are meticulously crafted to seamlessly fit our bars, ensuring a snug and tailored appearance. Fabricated from durable 20 mil clear vinyl, these covers offer exceptional clarity and protection, safeguarding the integrity of your bars while allowing their aesthetic appeal to shine through. Designed with precision and quality in mind, our covers provide a reliable solution for preserving and enhancing the presentation of your bar assets.
Bumpers
Full Bumper - Heavy duty full perimeter bumper extends beyond doors and handles for added protection. The bumper is mounted to the base frame for added durability - the bumper is not used as the base frame. In this way, the bumper absorbs all the shock in transport, protecting the integrity of the construction.
Bottom Corner Bumpers
Caster
6" Casters - 6" Heavy-duty casters - polyurethane casters are long lasting and used for easy maneuverability, even when fully loaded
8" Casters
Extra
Grounding Strap - Grounding strap

SHORT FORM SPEC

Specified unit shall be FWE Model No. SCB-8-HS, Mobile Bars.

CONSTRUCTION. Welded stainless steel base frame of heavy gauge 1" square stainless steel tubing with extra 10 gauge stainless steel caster corner plate reinforcements. Work surface shall be constructed of 20 gauge stainless steel. Interior of body shall be lined with 22 gauge stainless steel, bonded to cabinet walls and bottom storage area. Seams shall overlap for greater durability and moisture resistance. Work and splash areas shall be polished stainless steel with easy-to-clean coved corners. Front edge shall have raised marine nosing to contain spills.

FINISH MATERIALS & TOP.
SCB Series: Shall be stainless steel, heliarc welded; ground and polished exterior and stainless steel bar top.

CASTERS. Maintenance free polyurethane tire casters in a configuration of two (2) rigid and two (4) swivel with brake. Casters shall have a reinforced yoke mounted to 10 gauge caster plate. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular base frame.

STORAGE AREA. 8 foot bar shall be provided with storage area with shelf. All lower compartments shall be stainless steel lined.

BAR ACCESSORIES. Standard equipment shall include 4.25" deep, heavy gauge stainless steel full length bottle speed rail; removable without tools. Towel ring shall be mounted to working side. Stainless steel condiment holder provided.

INSULATED ICE BIN WITH DRAIN. Models shall have one (1) ice bin with drains. Ice bin with drain shall be one-piece stainless steel with coved corners: 19.75" x 12.75" x 10.5" deep. Ice bin shall have enclosed foam insulation. Ice bin shall have a capacity of 60lbs of ice, and be provided with a stainless steel sliding cover.

WATER CAPACITY. The unit shall include one (1) five gallon fresh water tank and one (1) seven and a half gallon waste water tank. Electric water heater with adjustable thermostat provides a temperature range of 65°-145°F (19°-62°C) and heats up to 2.7 gallons of water. Glass insulated tank for thermal efficiency and fast recovery.

FAUCET CHARACTERISTICS. Faucet shall be motion activated and powered by four (4) AA Batteries. Faucet shall have a concealed thermostat control. Faucet water pressure shall be two (2) gallons per minute.

SOAP DISPENSER CHARACTERISTICS. Soap dispenser shall be motion activated and shall be powered by four (4) D batteries. Recommended soap refill: Rubbermaid FG4015411 800ml.

ELECTRICAL CHARACTERISTICS. 3 wire grounded 10 foot extension power cord and plug. See electrical data chart above for amperage and receptacle configuration.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.

Provide with the following accessories:

FWE products may be covered under one or more of the following U.S. patents: 288,299;238,300;3,952,609;4,192,991.
