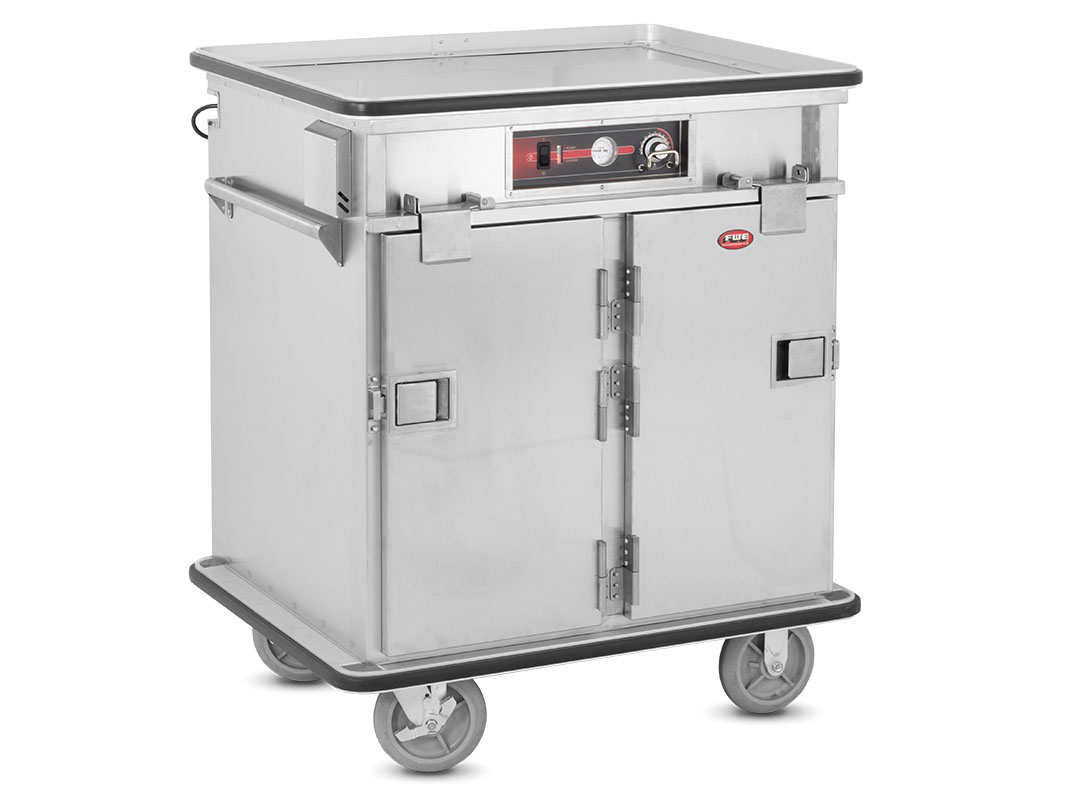

PTST-1314-44

PRISONER TRAY TRANSPORT & SERVE CABINETS
Heated Holding & Serving for 13"x14" Prisoner Trays
TOPMOUNT "PTST-1314" SERIES

PTST-1314-44 Spec Sheet

Correctional heated transport and holding carts are designed to meet demanding environments with security features to protect staff members and inmates

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

DESCRIPTION

Standard tamper resistant features suited for minimum to maximum security environments include: Super-duty, full perimeter bumper; Fan guard cover; Thermostat retention strap and plexi-guard thermometer cover for heated compartments; Tamper-proof fasteners throughout; Stainless steel, heavy duty, hinges; Pad-locking transport latches; Tubular, stainless steel push handles; 18 guage stainless steel exterior.

Guarded Heat system is built in to prevent tampering, loss or damage. Top mounted elements are protected from spillage and leave the bottom of the cabinet open for easy cleaning and reduced maintenance costs

Padlocking security transport latch keeps doors closed while in motion

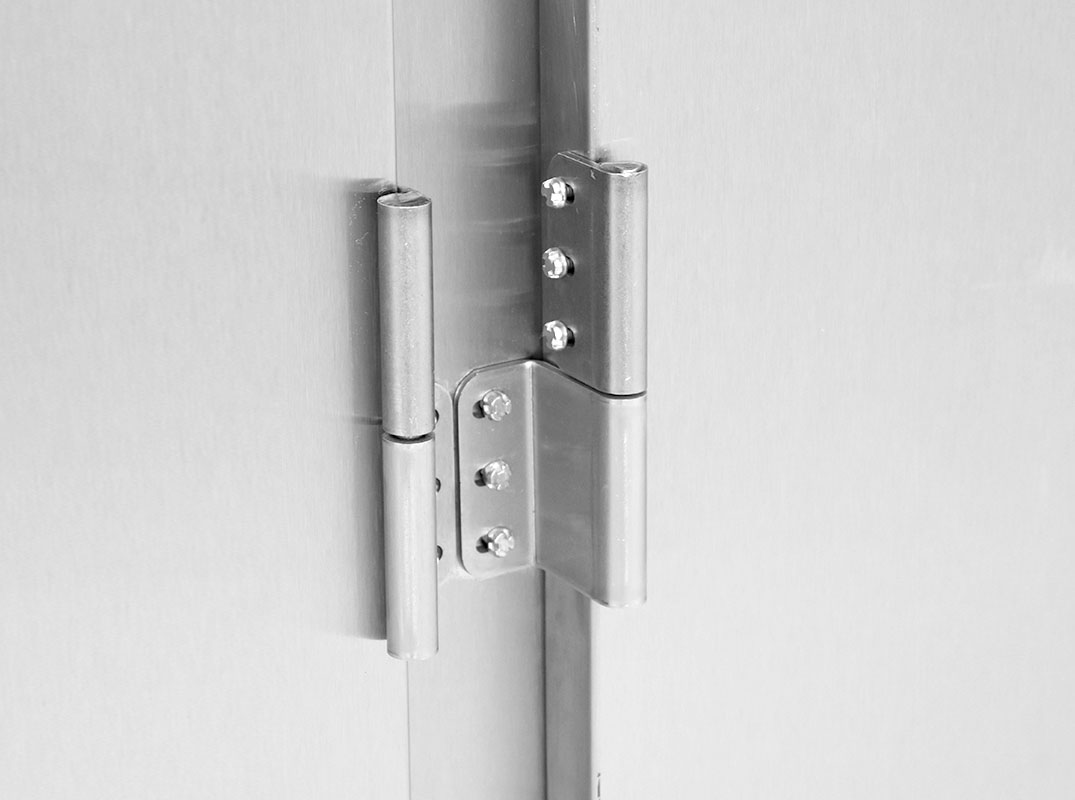

Stainless steel hinges - heavy-duty, 12 gauge, stainless steel hinges keep doors properly aligned for years of use, secured with tamper-proof screws

Transport and serve meal delivery trays. Ideal for cook serve applications such as cell block, satellite, and cafeteria

FEATURES

Agency Approvals
UL EPH - UL EPH recognizes products certified to meet environmental and public health standards. The UL EPH logo shows the word "Classified" above the UL mark, which indicates that the product complies with ANSI/NSF standards, in addition to other applicable codes.
UL - The UL mark, which now serves customers in more than 100 countries, has become the authority on product safety. Its engineers test for things like soundness of design, safety of electrical components, and structural integrity of products for which UL listing is sought.
If you think of NSF International classification as protection for your customers, then the mark of Underwriters Laboratories (UL) indicates safety for those who work in your commercial kitchen. The Illinois-based testing agency assures that the equipment that gets its stamp operates safely. There is also a sanitation classification that offers similar assurances about food safety as the NSF mark. Products are indicated as "Classified UL-EPH."
Bumpers
Super Duty Bumper - Super duty full perimeter bumper is wider and thicker than our standard perimeter bumper. This is a good option for frequent transport or correctional environments.
Caster
6" Casters - 6" Heavy-duty casters - polyurethane casters are long lasting and used for easy maneuverability, even when fully loaded
EZ Roll Heavy Duty Poly Caster - The EZ Roll Casters are standard on FWE cabinets and provide moderate floor protection with a high weight capacity.
EZ roll casters are shock absorbing and roll easier under heavy loads.

Available in 5", 6" and 8" diameters.
Construction
Stainless Steel / Insulated - Constructed of stainless steel, with welded base frame for added strength and durability - fully insulated cabinet and door provide energy efficient heating and longer holding times
Control Panel
Mechanical Controls - Mechanical controls

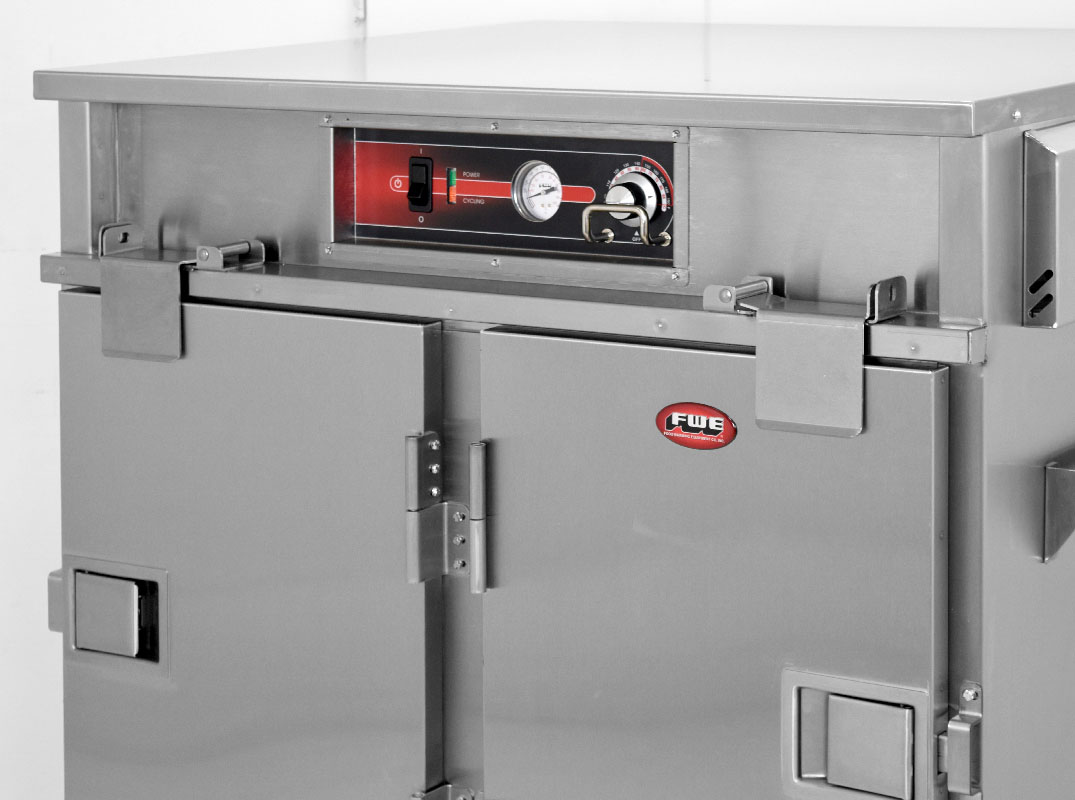

Top Mount Mechanical Controls - Controls are up-front, easy to read and set, and include a full-range Fahrenheit/Celsius thermostat for easy operation
Door Count
2 Doors
Door Hinge
Stainless Steel Hinges - Stainless Steel Hinges
Door Latch
Paddle Door Latch - Recessed paddle style door latch

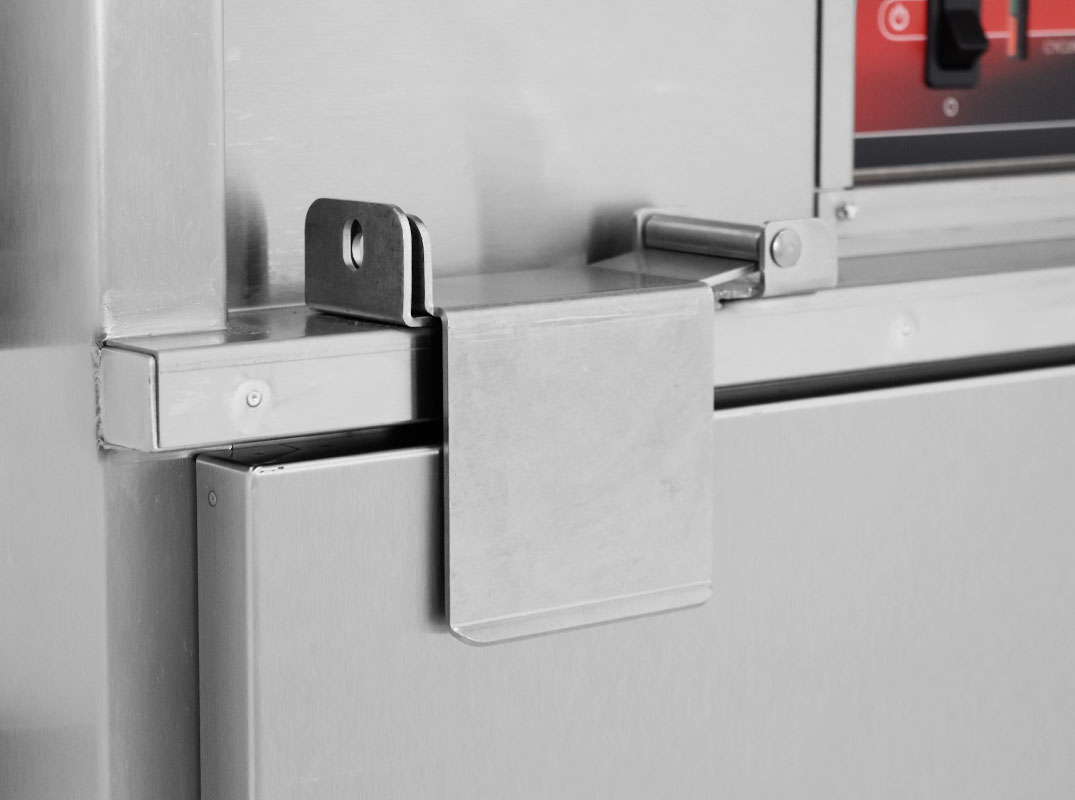

Padlocking Transport Latch - Cabinet mounted latch keeps door secure during transport, increased security with padlocking capabilities
Doors
Gasketless
Full Stainless Steel Door - Flush mounted, stainless steel insulated doors
Side by Side Doors - Flush mounted, stainless steel insulated french style doors help maintain cabinet temperature during peak serving times
Electrical
Tri-Directional Cord - Recessed tri-direction cord pocket - allows for compact fit
Hidden Elements - Elements and blower are protected from spillage. Bottom of the cabinet is open for easy cleaning reducing maintenance and cleaning costs
Extra
Tamper Resistant Fasteners - Tamper resistant fasteners throughout
Correctional Warranty - One year parts, six months labor limited warranty
Security Packages - HDM security packages can be added to select cabinets to help increase the security and durability of your unit
Handles

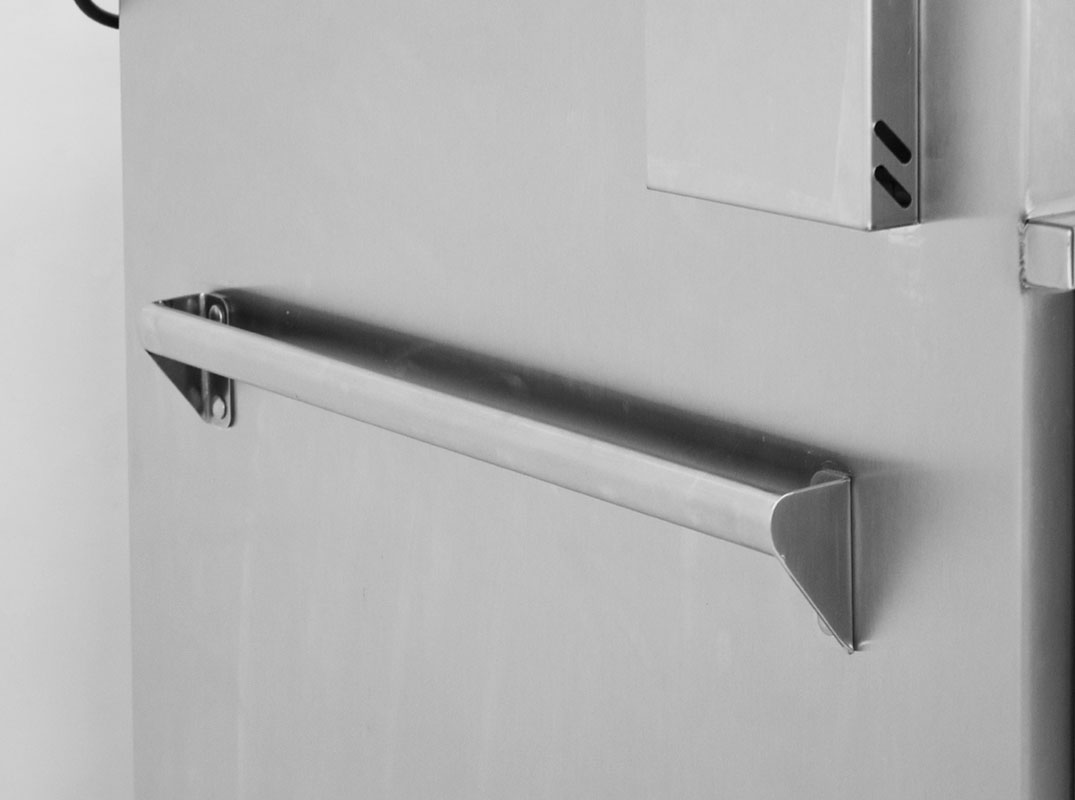

Tubular Push Handles - Heavy duty stainless steel push pull handles are secured to the unit with reinforced backing plate. Ergonomically designed to be easy on the hands
Heat System
Top Mount Heat System - Large air circulation top heat source provides open bottom base
Hinging
Hinges in the Center - Center hinging allows door to lie flush when open
Slides and Shelves
Open Cavity - Open base units offer maximum flexibility for serving applications, allowing ample room for storage and transport to make your food service complete

OPTIONS & ACCESSORIES

Bumpers
Top Bumper - Top mounted heavy duty full perimeter bumper extends beyond doors and handles for added protection during transport.
Top Corner Bumpers - Top corner bumpers are a good option for those customers not needing the protection of a full bumper, but still require protection for walls and surrounding equipment.
Caster
All Swivel Casters - All swivel casters allow for greater maneuverability. Great for tight turns or severe corners (such as on and off trucks or narrow hallways).
A drawback to the all swivel configuration is that it is harder to control the direction of the equipment when rolled in a straight line.
Larger & Upgraded Casters - Larger Casters
Door Latch
Key Locking Door Latch - Heavy duty door latch with key locking capabilities
Electrical
220-240 Volt - 220-240 Volt
Upgraded Element - Upgraded Element
Extra
Thermal Barrier Wall - Thermal Barrier Wall keeps the hot side hot and the cold side cold.
Top Guard Rail - 3 sided or 4 sided top guard rails allow for the top of the cabinet to be used for storage
Hinging
Alternate Door Swing Configurations - Alternate door swing configurations are available for multi door cabinets
Slides and Shelves
Fixed Shelves - Shelves are positioned into railings welded to body . Heavy-duty "no sag" shelves are removable to facilitate thorough cleaning

SHORT FORM SPEC

Specified unit shall be FWE Model No. PTST-1314-44, commercial prisoner tray transport and serve cabinet:

CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 18 gauge polished exterior, 22 gauge stainless steel interior with easy-to-clean coved corners. Welded tubular base frame shall be 1" square, heavy gauge stainless steel tubing, with 10 gauge stainless steel reinforcing stress plates at corners.

INSULATION. Insulated throughout; top, back, bottom, sides, doors using high density ceramic and fiberglass insulation.

HANDLES. Heavy-duty 1" diameter tubular stainless steel push handles. Reinforced and welded with stainless steel channel to prevent removal.

SUPER-DUTY BUMPER. Solid, 1.5" high, wraparound aluminum channel, bolted to frame, with snap-in, non-marking replaceable vinyl cushion. Full perimeter bumper extends beyond doors, handles, etc., for added protection. Shall be continuous, with corner cut-outs to facilitate cleaning. Super-Duty Bumper shall be made of thicker 0.25" aluminum and be wider at 4.875".

DOORS AND LATCHES. Flush mounted, stainless steel, insulated doors. Each door shall have three (3) heavy-duty, 12 gauge stainless steel hinges. Each door shall be equipped with a positive closing, flush-in-door, stainless steel paddle latch. The hinge and latch mountings are reinforced with stainless steel backing plates. Each door shall be provided with padlock compatible (padlock not included) transport/security latch.

CASTERS. 6" maintenance free, polyurethane casters in a configuration of two (2) rigid, and four (4) swivel with brake. Casters shall have a reinforced yoke welded to 10 gauge caster mounting plate. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular frame of the unit.

HEATING SYSTEM/CONTROLS. Top mounted, forced air blower system shall include one (1) Hi-Temp, self-lubricated, impedance protected, fan-cooled blower motor to distribute heat equally throughout cabinet interior. Heating element shall be located at top of cabinet to eliminate hot spots and to prevent overheating of lower trays and pans. Back wall heat distribution tunnel shall be vented for balanced air circulation. Controls shall be up-front, recessed and shall include a full range thermostat adjustable to actual temperature. Thermostat shall include temperature scale marked in ten degree increments (F/C) from 90° to 190°F (30° to 90°C). An operational range thermometer, power supply light, thermostat cycling light, and 20 amp ON/OFF switch are also included.

CAPACITY. Does not include rack or shelf. Contact factory for custom shelving.

ABUSE RESISTANT FEATURES. Cabinet shall have thermostat knob retention strap, and 1/4" thick Lexan cover over the thermometer. Both shall be attached with tamper-proof fasteners to prevent unauthorized removal. Cabinet shall have tamper-resistant fasteners in all critical areas, and extra welds throughout for added durability. Heavy-duty 1" diameter tubular stainless steel push handles shall be welded in place and reinforced with stainless steel channel to prevent removal. Each door shall be provided with padlock compatible (padlock not included) transport/security latch.

ELECTRICAL CHARACTERISTICS. 3 wire grounded tri-directional power cord and plug, rear mounted for safety. See electrical data chart above for amperage and receptacle configuration. See electrical chart for models that require a dedicated circuit.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.

FWE products may be covered under one or more of the following U.S. patents: 288,299;238,300;3,952,609;4,192,991.
