PTST-1109-84HR

HEATED AND REFRIGERATED SATELLITE TRANSPORT CABINETS
For 11" x 9" Compartment Trays
Dual-Temp "PTST-1109" Series

PTST-1109-84HR Spec Sheet

Correctional transport and holding carts are designed to meet demanding environments with security features to protect staff members and inmates

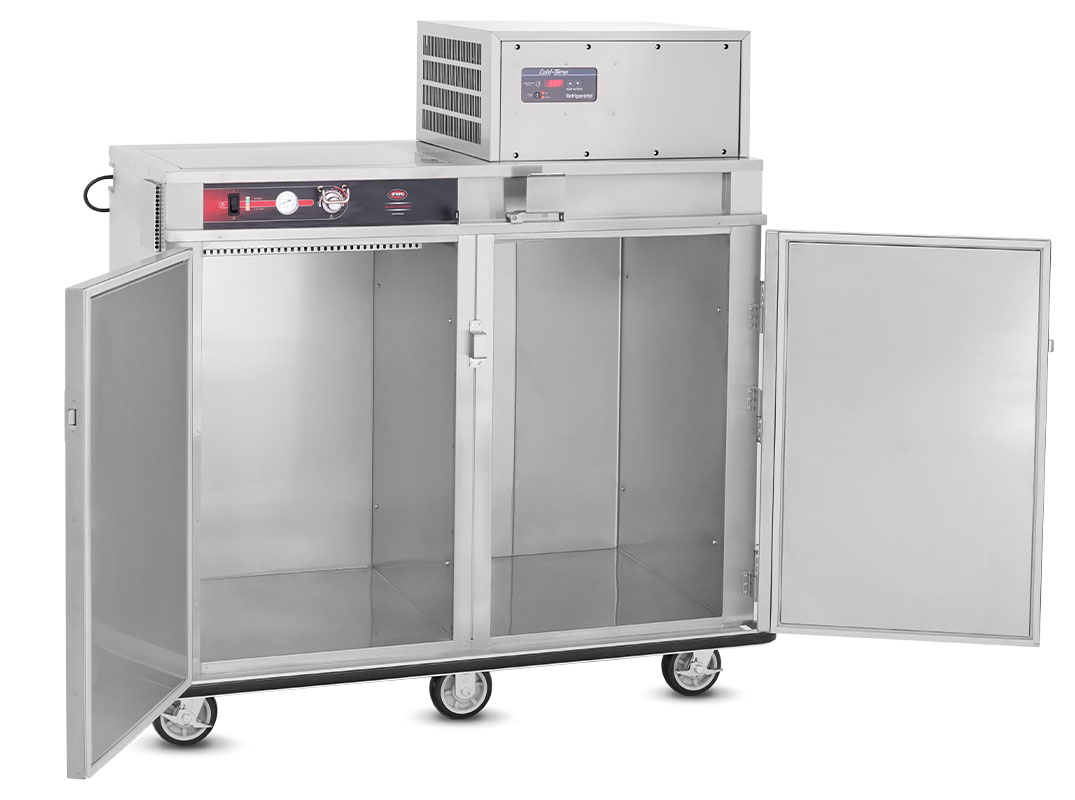

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

DESCRIPTION

FWE Heated / Refrigerated Prisoner Tray Servers allow you to serve hot and cold foods from the same two-section cabinet, separated by a thermal insulated wall assuring even temperatures in both sections. Our heat system keeps pre-trayed foods hot and moist in one compartment, while cold plates keep trays of cold foods chilled and ready to serve in the ambient section. The addition of guard rails and beverage urn angles to the top of unit make beverage service fast and easy. Inmate populations are served quickly, efficiently, and at less cost. The heat system is built into the cabinet to prevent tampering and reduce maintenance and cleaning costs. Clean up is effortless. The controls in the PTST-1109-78HR are tamper resistant and feature a full range thermostat adjustable to actual temperature (90°F -190°F) so they are easy to see and operate.

We don't just add a "security package" to a catalog item - the Heated / Ambient correctional cart series is specifically designed to withstand the correctional environment. With correctional foodservice equipment in mind, our cabinets are built tough with an 18-gauge stainless steel exterior, welded construction and our exclusive tubular stainless steel base frame. The Heated / Ambient Series includes abuse resistant features such as tamper resistant screws, locking security latches and protected controls. From minimum to maximum security, a wide range of other prison accessory packages are available to tailor each unit to your institutions' special needs.

Of course, as with all FWE heated holding cabinets, standard models can be modified to accommodate other tray sizes and spacings for your corrections environment.

FEATURES

Construction
Stainless Steel / Insulated - Constructed of stainless steel, with welded base frame for added strength and durability - fully insulated cabinet and door provide energy efficient heating and longer holding times
Control Panel
Top Mount Mechanical Controls - Controls are up-front, easy to read and set, and include a full-range Fahrenheit/Celsius thermostat for easy operation
Mechanical Controls - Mechanical controls
Cold Temp Controls - Intuitive controls are easy to use and highly accurate, and oversized, high demand components assure rapid pull down times and recoveries. Set range 33F - 40F (1C - 4.4C)
Door Hinge
Stainless Steel Hinges - Stainless Steel Hinges
Doors
Side by Side Doors - Flush mounted, stainless steel insulated french style doors help maintain cabinet temperature during peak serving times
Gasket Sealed - Gasket sealed door; tight double seal makes for a perfect secure closure and easy to clean
Full Stainless Steel Door - Flush mounted, stainless steel insulated doors
Electrical
Tri-Directional Cord - Recessed tri-direction cord pocket - allows for compact fit
Hidden Elements - Elements and blower are protected from spillage. Bottom of the cabinet is open for easy cleaning reducing maintenance and cleaning costs
Extra
Correctional Warranty - One year parts, six months labor limited warranty
Security Packages - HDM security packages can be added to select cabinets to help increase the security and durability of your unit
Tamper Resistant Fasteners - Tamper resistant fasteners throughout
Handles
Tubular Push Handles - Heavy duty stainless steel push pull handles are secured to the unit with reinforced backing plate. Ergonomically designed to be easy on the hands
Heat System
Dual-Temp Cold and Hot System - Simultaneously hot and cold. Cabinet divided into two sections - dual purpose cabinet holds hot and cold food
Top Mount Heat System - Large air circulation top heat source provides open bottom base

OPTIONS & ACCESSORIES

SHORT FORM SPEC

Specified unit shall be FWE Model No. PTST-1109-84HR, Heated Satellite Transport Cabinet.

CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 18 gauge polished exterior, 22 gauge stainless steel interior with easy-to-clean coved corners. Welded tubular base frame shall be 1" square, heavy gauge stainless steel tubing, with 10 gauge stainless steel reinforcing stress plates at corners.

INSULATION. Heated cavity insulated throughout; top, back, bottom, sides, doors using high density ceramic and fiberglass insulation. Refrigerated and ambient cavities have high efficiency insulation throughout cabinet and door.

HANDLES. Super-duty, recessed tubular handles mounted at each end of unit. Mountings reinforced with stainless steel channel.

SUPER-DUTY BUMPER. Solid, 1.5" high, wraparound aluminum channel, bolted to frame, with snap-in, non-marking replaceable vinyl cushion. Full perimeter bumper extends beyond doors, handles, etc., for added protection. Shall be continuous, with corner cut-outs to facilitate cleaning. Super-Duty Bumper shall be made of thicker 0.25" aluminum and be wider at 4.875".

DOORS AND LATCHES. Flush mounted, stainless steel, insulated doors. When opened, doors lie flush against side of unit to keep work aisles unobstructed. Each door shall have three (3) heavy-duty, 12 gauge stainless steel hinges. Each door shall be equipped with a positive closing, flush-in-door, stainless steel paddle latch. The hinge and latch mountings are reinforced with stainless steel backing plates. Each unit shall be provided with padlock compatible (padlock not included) transport/security latch.

CASTERS. Maintenance free polyurethane casters in a configuration of two (2) rigid and four (4) swivel with brake. Casters shall have a reinforced yoke mounted to 10 gauge caster plate. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular frame of the unit.

COLD-TEMP SYSTEM/CONTROLS. A 1/4 HP Hi-torque condensing unit, air-cooled closed system has a three pound receiver charged with environmentally safe ANSI/ASHRAE Standard 34-1992 Safety Group Classification (A1) 450A refrigerant. A thermal expansion valve (for pressure control) also a filter dryer. Controls shall include an easy to read digital display for cabinet temperature (with recall capability of temperature set point and actual cabinet temperature). Easy to read master ON/OFF button with power indicator light, cooling cycle indicator light, on-demand defrost with a defrost cycle indicator light. Adjustable temperature range from 33°F to 38°F (.5°C to 3.3°C) factory preset temperature is 38°F (3.3°C).

HEATING SYSTEM/CONTROLS. Top mounted, forced air blower system shall include one (1) Hi-Temp, self-lubricated, impedance protected, fan-cooled blower motor to distribute heat equally throughout cabinet interior. Heating element shall be located at top of cabinet to eliminate hot spots and to prevent overheating of lower trays and pans. Wall heat distribution tunnel shall be vented for balanced air circulation. Controls shall be up-front, recessed and shall include a full range thermostat adjustable to actual temperature. Thermostat shall include temperature scale marked in ten degree increments (F/C) from 90° to 190°F (30° to 90°C). An operational range thermometer, power supply light, thermostat cycling light, and 20 amp ON/OFF switch are also included.

TAMPER RESISTANT FEATURES. Cabinet shall have thermostat knob retention strap, and 1/4" thick plexiglass cover over the thermometer. Both shall be attached with tamper-proof fasteners to prevent unauthorized removal. Cabinet shall have tamper resistant fasteners in all critical areas, and extra welds throughout for added durability. Heavy-duty 1" diameter tubular stainless steel recessed push handles shall be welded in place and reinforced with a stainless steel channel to prevent removal. Provided with a tamper resistant plexiglass control panel cover on refrigeration cavity.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.

ELECTRICAL CHARACTERISTICS. 3 wire grounded tri-directional power cord and plug, corner mounted for safety. See electrical data chart above for amperage and receptacle configuration. See electrical chart for models that require a dedicated circuit.

LITERATURE

FWE products may be covered under one or more of the following U.S. patents: 288,299;238,300;3,952,609;4,192,991.
