PHTT-2333-18-CV

PRECISE HUMIDITY TEMPERATURE TECHNOLOGT
Insulated - Holds Various Sized Donut Screens up to 23" x 33"
Clymate IQ® "PHTT-2333" Series

PHTT-2333-18-CV Spec Sheet

Clymate IQ® cabinets take the guesswork out of proofing dough and provide professional results every time - controlled venting available

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

DESCRIPTION

PHTT-2333 Series - Clymate IQ® Proofer-Heater Holding Cabinets:
Optimize your bakery's efficiency with the PHTT-2333 Series Clymate IQ® Proofer-Heater Holding Cabinets by FWE. Engineered for precision and consistency, these cabinets provide the ideal environment for proofing and holding sensitive dough, ensuring perfect results every time.

1. Quick and Efficient Heating:
The PHTT-2333 Series features Clymate IQ® technology, allowing it to reach set humidity and temperature levels up to 25% faster than competitors. This ensures your dough is ready when you are, without unnecessary delays.

2. Ultimate Climate Control:
Independently set and monitor both relative humidity (0-90%) and temperature (90-200°F) with simple, color-coded controls. Low water, low-temperature indicators, and optional audible alarms ensure you maintain optimal conditions throughout the proofing process.

3. Consistent Proofing Environment:
Create the perfect conditions for sensitive doughs with precise control over humidity and temperature. The push/pull air distribution system ensures even temperature and humidity on every level, eliminating inconsistencies.

4. Fast Recovery: Designed for high-volume kitchens, the PHTT-2333 Series quickly returns to the set temperature, even during peak service times, thanks to its advanced self-closing door hinges and robust insulation.

5. Durable and Easy to Clean:
Constructed with heavy-duty stainless steel and featuring a removable, large-volume water pan, these cabinets are built for durability and ease of maintenance. Cleaning is simple and quick, keeping your equipment in top condition.

6. Versatile Design:
Accommodating various sizes of donut screens, the PHTT-2333 Series is designed with fixed, removable stainless steel racks that are both durable and easy to clean. Optional pass-thru doors enhance workflow efficiency, providing access from both sides of the cabinet.

Experience the reliability and precision of the PHTT-2333 Series Clymate IQ® Proofer-Heater Holding Cabinets, designed to meet the demanding needs of commercial bakeries. Ensure your baked goods are always proofed and held under perfect conditions with FWE's innovative technology.

FEATURES

Bumpers
No Bumper - No bumper
Caster
EZ Roll Heavy Duty Poly Caster - The EZ Roll Casters are standard on FWE cabinets and provide moderate floor protection with a high weight capacity.
EZ roll casters are shock absorbing and roll easier under heavy loads.

Available in 5", 6" and 8" diameters.
Mobile
5" Casters - 5" Heavy-duty casters - polyurethane casters are long lasting and used for easy maneuverability, even when fully loaded
Construction
Stainless Steel / Non Insulated - Constructed of stainless steel, with welded base frame for added strength and durability
Control Panel

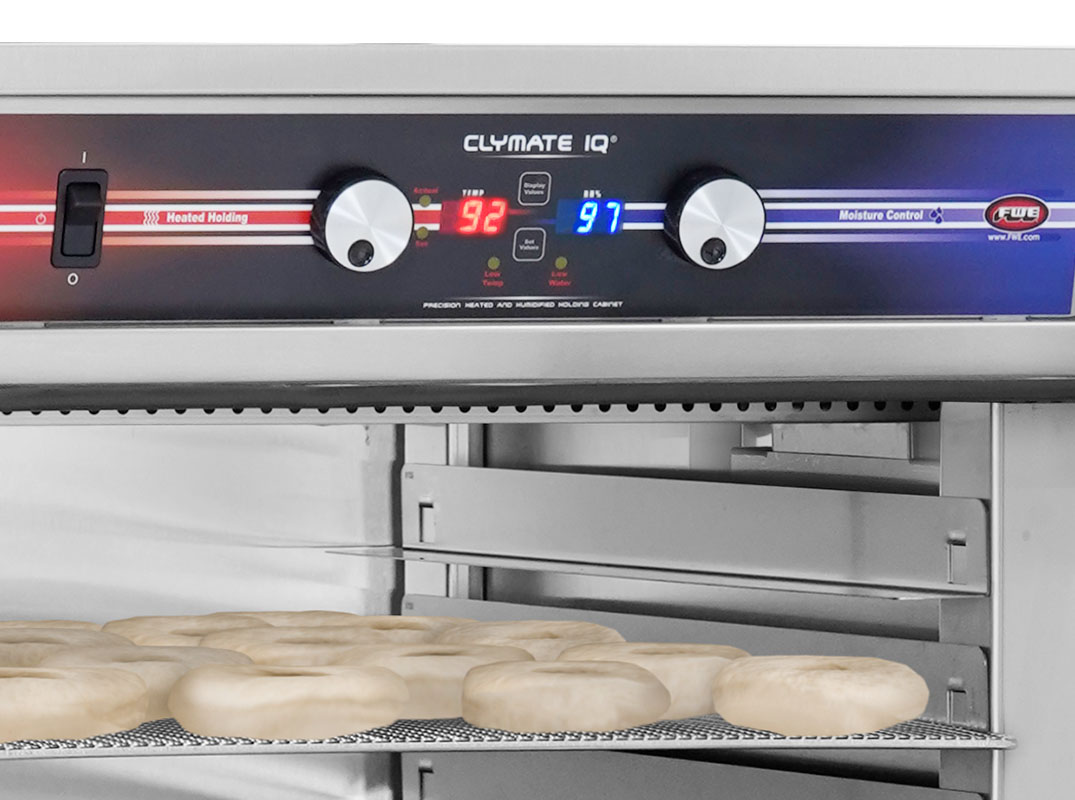

Electronic Controls - Electronic controls featuring easy to read digital display of cabinet temperature (with recall capacity of temperature set point and actual cabinet temperature), equipped with a programmable low temperature alarm, master ON/OFF switch with power indicator light.
Door Count
2 Doors
Door Hinge
Edgemount Hinges - Heavy-duty edge mount die cast hinges
Door Latch
Magnetic Work Flow Door Handle - Magnetic work flow door handles ergonomically accommodates kitchen staff and servers of varying heights
Doors
Dutch Doors - Dutch doors help maintain cabinet temperature during peak serving times
Electrical
Tri-Directional Cord - Recessed tri-direction cord pocket - allows for compact fit
Extra
Warranty - Two year limited warranty
Heat System
Clymate IQ Heat System - Achieve extended holding times with controlled moisture. Provide the best food quality from precision heated moisture for either long-term or short-term holding applications. Precision heat and humidity achieved by a unique push/pull air distribution system to provide uniform temperature and humidity on every level, throughout the unit
Hinging
Field Reversible Hinging - Field reversible door- flexible installation options for kitchen layout
Hinges on Right Side - Right hand door hinging
Slides and Shelves
Fixed Slides - One piece rack assembly, die stamped stainless steel for extra strength, and removable for easy cleaning

OPTIONS & ACCESSORIES

SHORT FORM SPEC

Specified unit shall be FWE Model No. PHTT-2333-18-CV:

CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 20 gauge polished exterior, 22 gauge stainless steel interior with easy-to-clean coved corners.

INSULATION. "Ultra-Guard" UG-26 high density fiberglass insulation throughout; top, back, bottom, sides and door(s).

HANDLES. Form grip flush-in-wall hand grips recess mounted on each side of unit.

BUMPERS. Bumper stand offs shall be mounted to rear base to allow for proper air circulation.

DOORS AND LATCHES. Flush mounted, stainless steel insulated doors shall be self closing and field reversible. High temperature gasket sealed; gasket shall be cabinet mounted. Magnetic work flow door handle shall be full length, vertical, and positive closing. Each door shall have two (2) heavy-duty edgemount die cast hinges. Shall be standard with dutch doors. Dutch door: two (2) half size doors.

CASTERS. Maintenance free polyurethane tire casters in a configuration of two (2) rigid and two (2) swivel with brake. Casters shall have a reinforced yoke mounted to 10 gauge caster plate.

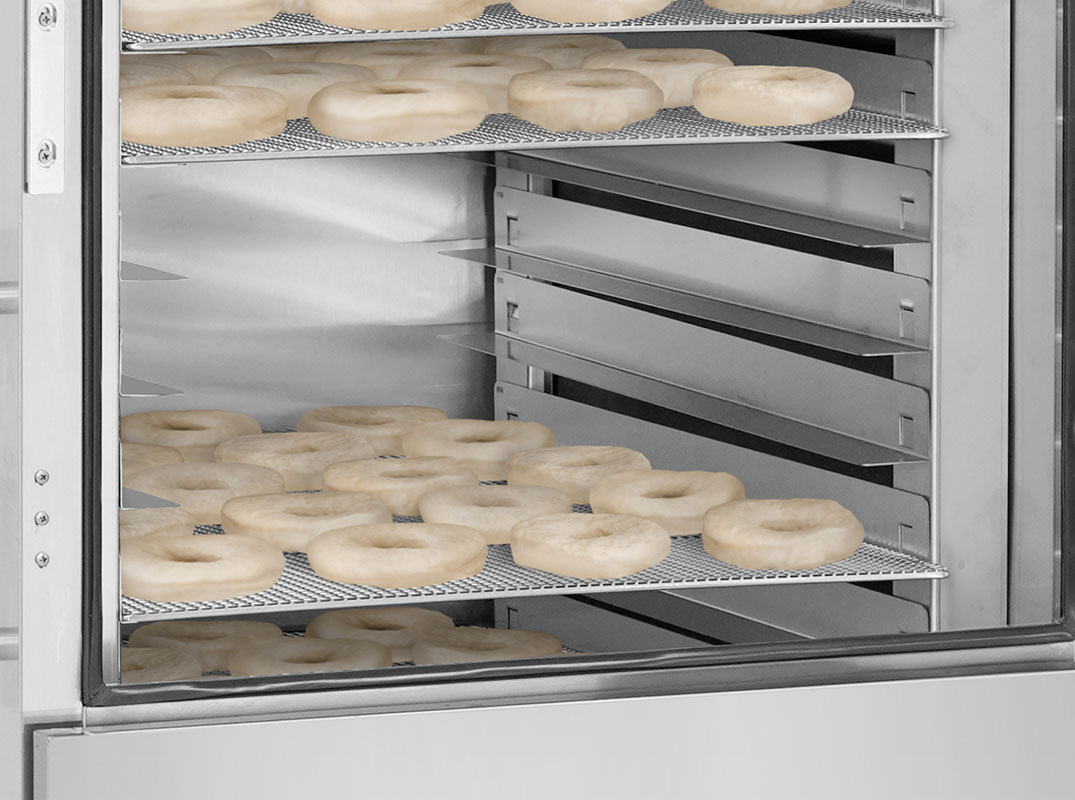

FIXED RACK. Removable pair of one piece stainless steel racks with fixed spacings of 3" between slides. Each pair of tray slides accommodates one (1) 23" x 33" donut screen or one (1) 23" x 23" donut screen. One piece rack is easy to remove without the use of tools for cleaning.

PHTT SYSTEM/CONTROLS. Built in humidified holding system shall include two (2) separate long life Incoloy nickel-chromium alloy heating elements per cavity to provide separate, adjustable, precise food temperature from 90°F to 200°F (32°C to 93°C) and maintain food texture with settings from 0 to 90% RH (Crisp to Moist). Patented Precise Humidity Temperature Technology controls shall be provided for each function. One to control the interior air temperature, and one to control the interior air moisture with hydro immersion water bath. Shall have integrated controlled venting system that removes humidity based on customer set point. Stainless steel water reservoir shall be removable for ease of cleaning/sanitation. Built-in drip trough has removable drain plug. System shall have circulating fan to assist heat recovery/moist air distribution. Controls shall be up-front, recessed and eye-level for convenience and safety. ON/OFF power switch, humidity cycle light and thermostat cycling light shall also be included.

ELECTRICAL CHARACTERISTICS. 3 wire grounded tri-directional power cord and plug, rear mounted for safety. See electrical data chart above for amperage and receptacle configuration. See electrical data chart for models that may require a dedicated circuit.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.

LITERATURE

FWE products may be covered under one or more of the following U.S. patents: 288,299;238,300;3,952,609;4,192,991.

Interested in this model?

STANDARD FEATURES

FOR THIS MODEL

No Bumper

EZ Roll Heavy Duty Poly Caster

Mobile

5" Casters

Stainless Steel / Non Insulated

Electronic Controls

2 Doors

Edgemount Hinges

Magnetic Work Flow Door Handle

Dutch Doors

Tri-Directional Cord

Warranty

Clymate IQ Heat System

Field Reversible Hinging

Hinges on Right Side

Fixed Slides
