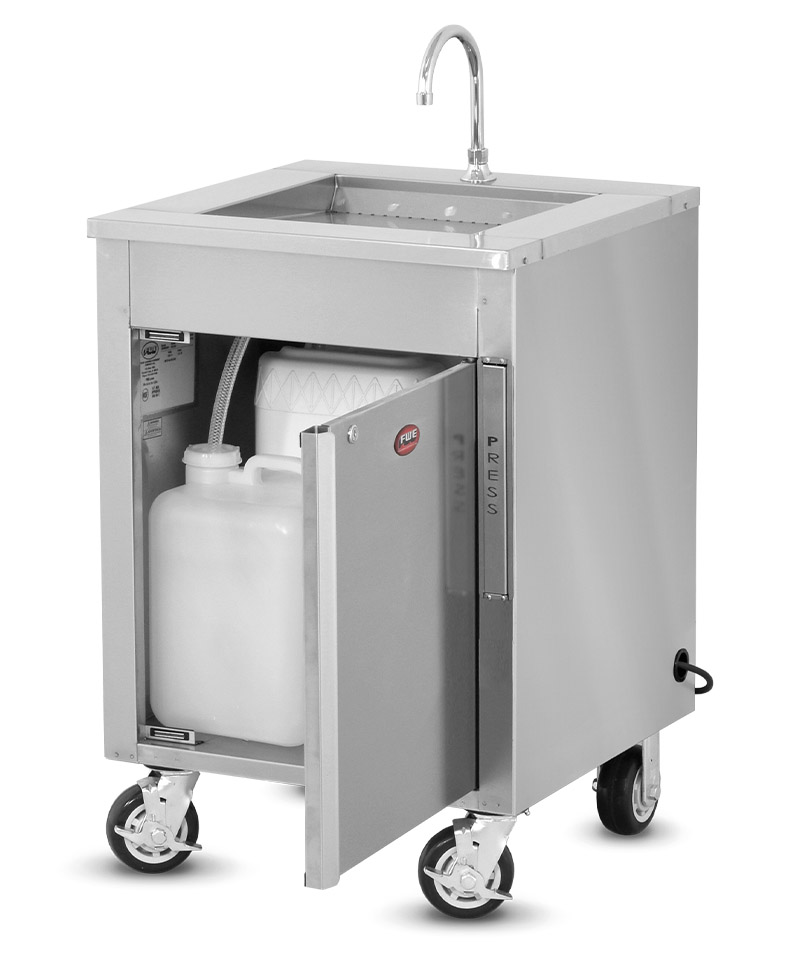

HS-24E

ECONOMY MOBILE HAND SINK
Self Contained Portable Hand Sink without Water Heater
Economy "HS-E" Series

HS-24E Spec Sheet

Economy portable hand sink is self-contained to allow safe hand washing and sanitizing in remote locations

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

DESCRIPTION

FWE's hands-free portable hand sinks are perfect for any location, making it possible to offer practical hand washing when it is needed to meet safety standards

Faucet is hands free and engaged by an easy-to-use knee-height push button. Duration of water flow is controlled by a timer factory preset for 7 seconds and is field adjustable

Made for transport applications - FWE hand sinks are fully constructed of stainless steel and equipped with heavy-duty maintenance-free casters

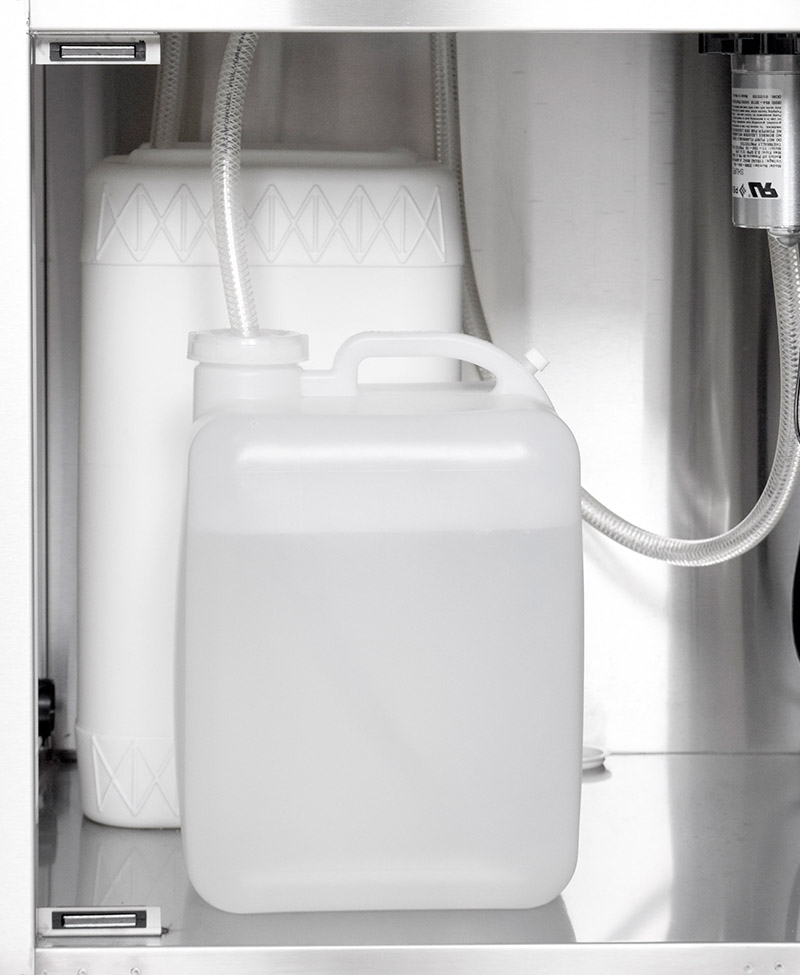

Provided with 5 gallon fresh water tank for consistent draw and a 7 gallon waste water tank to hold drainage

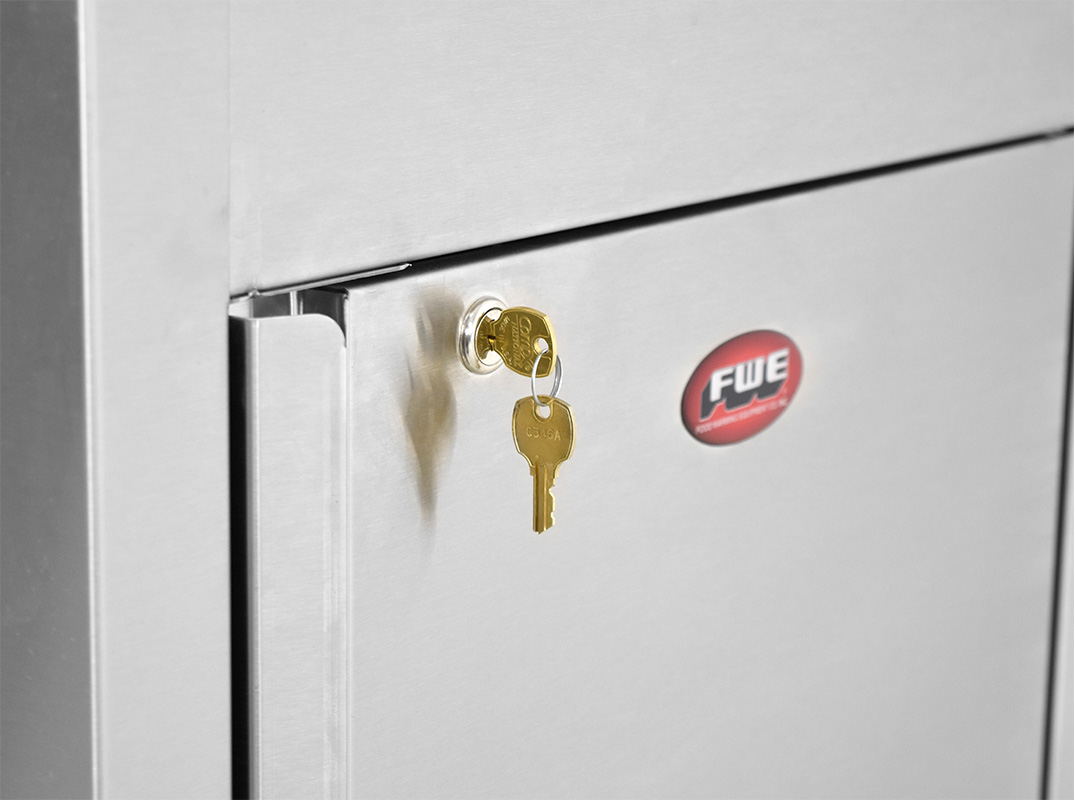

Lockable door prevents unauthorized access for safety and security

Cord exit can be easily moved to either side, providing flexibility in field placement

FEATURES

Bars
5 Gallon Fresh Water Tank - 5 gallon fresh water tank
7.5 Gallon Waste Water Tank - 7.5 gallon waste water tank
Built-In Electric Hand Sink - FWE's built in hand sinks are perfect for hosting an event in any location, making it possible to offer practical hand washing wherever it is needed. Water heater with adjustable thermostat quickly warms water for dispensing when needed.
Bumpers
No Bumper - No bumper
Caster
EZ Roll Heavy Duty Poly Caster - The EZ Roll Casters are standard on FWE cabinets and provide moderate floor protection with a high weight capacity.
EZ roll casters are shock absorbing and roll easier under heavy loads.

Available in 5", 6" and 8" diameters.
5" Casters - 5" Heavy-duty casters - polyurethane casters are long lasting and used for easy maneuverability, even when fully loaded
Mobile
Construction
Stainless Steel / Non Insulated - Constructed of stainless steel, with welded base frame for added strength and durability
Door Count
1 Door
Door Hinge
Pin Style Hinges - Heavy duty pin style hinges
Door Latch
Magnetic Recessed Pull Handle
Locking Cam Latch
Doors
Full Stainless Steel Door - Flush mounted, stainless steel insulated doors
Gasketless
Extra
Warranty - Two year limited warranty
Handles
No Handles
Hinging
Hinges on Right Side - Right hand door hinging

OPTIONS & ACCESSORIES

Bumpers
Bottom Corner Bumpers
Caster
All Swivel Casters - All swivel casters allow for greater maneuverability. Great for tight turns or severe corners (such as on and off trucks or narrow hallways).
A drawback to the all swivel configuration is that it is harder to control the direction of the equipment when rolled in a straight line.
Larger & Upgraded Casters - Larger Casters
Electrical
220-240 Volt - 220-240 Volt
Extra
Graphic Wrap - Use your cabinet as a bill board! Catch the eye of your customer with your custom logo, message, or menu item images with a graphic wrap.
Hinging
Hinges on Left Side - Left hand door hinging, available on single door models only

SHORT FORM SPEC

Specified unit shall be FWE Model No. HS-24E, Economy Mobile Hand Sinks.

CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 20 gauge polished exterior, 22 gauge stainless steel interior with easy-to-clean coved corners.

DOORS AND LATCHES. Flush mounted, stainless steel door. Full length magnetic recessed workflow handle with locking cam latch. Heavy duty pin style hinges.

CASTERS. Maintenance-free polyurethane tire casters in a configuration of two (2) rigid and two (2) swivel with brake.

WATER CAPACITY. The unit shall include one (1) five gallon fresh water tank and one (1) seven and a half gallon waste water tank.

FAUCET CHARACTERISTICS. Faucet shall be motion activated and powered by four (4) AA Batteries. Faucet shall have a concealed thermostat control. Faucet water pressure shall be two (2) gallons per minute.

ELECTRICAL CHARACTERISTICS. 3 wire grounded 10 foot extension power cord and plug are fed through right side cord exit. Alternative left side cord exit provided. See electrical data chart above for amperage and receptacle configuration.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.

Provide with the following accessories:
