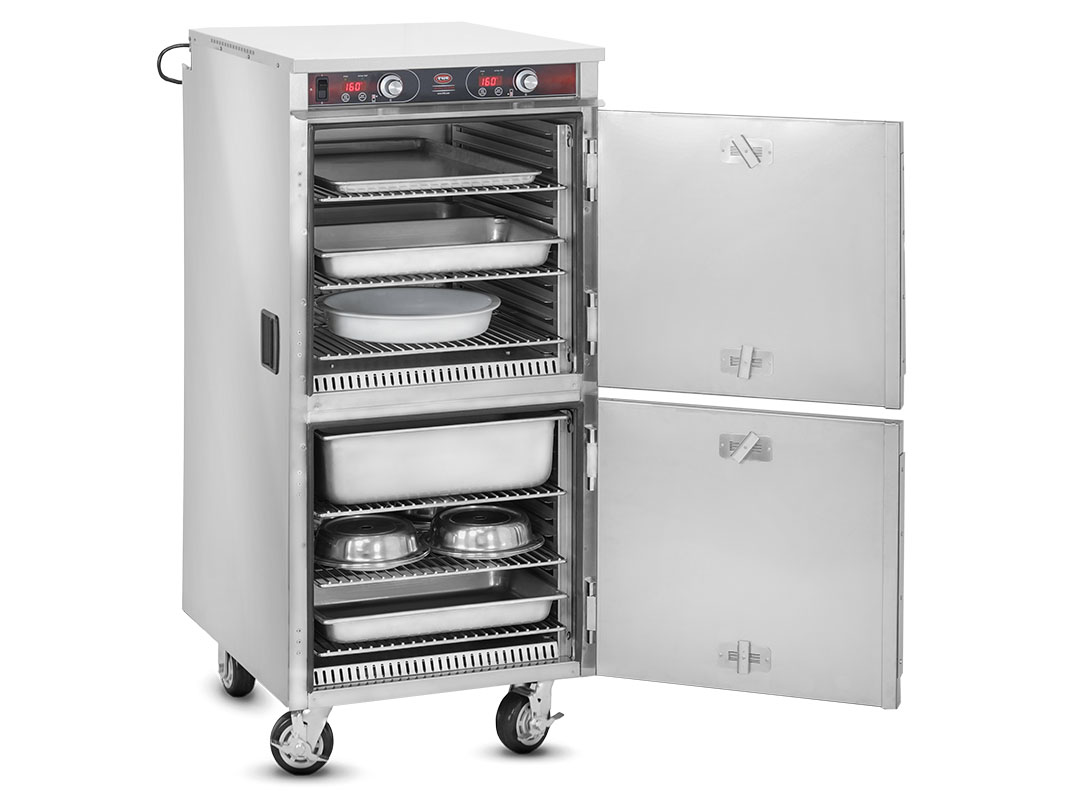

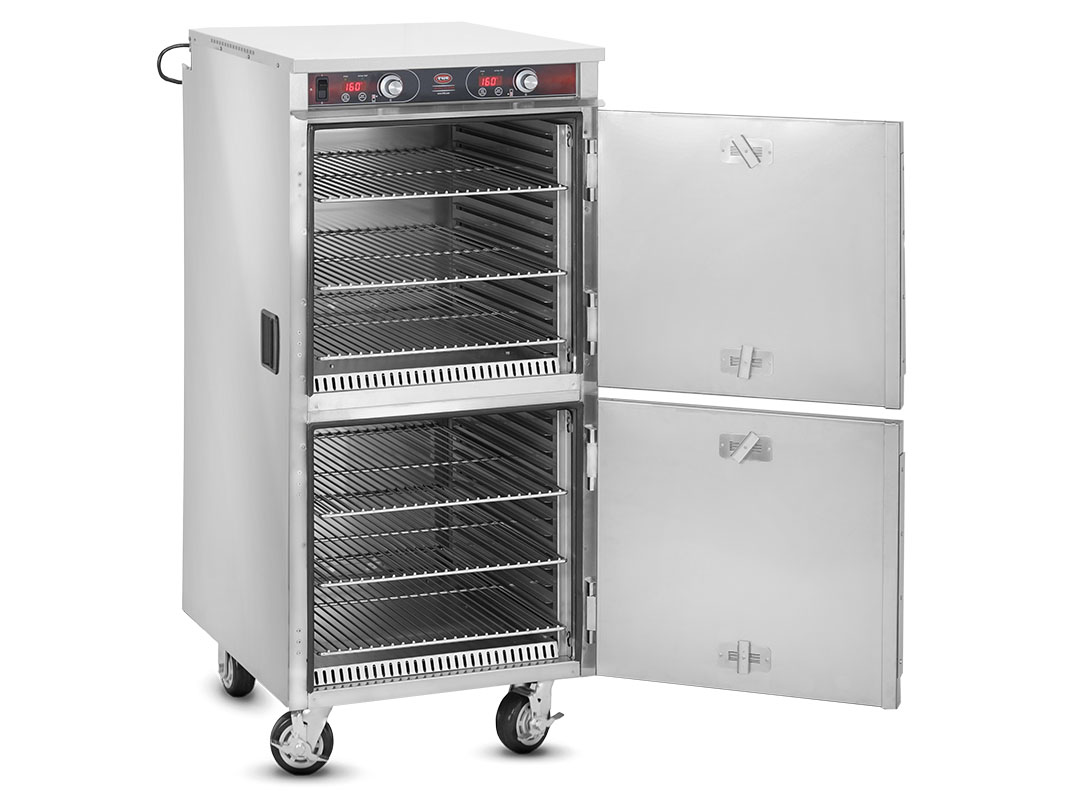

Specified unit shall be FWE Model No. HLC-2127-6-6, Heated Holding Cabinets.
CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 20 gauge polished exterior, 22 gauge stainless steel interior with easy-to-clean coved corners.
INSULATION. "Ultra-Guard" UG-26 high density fiberglass insulation throughout; top, back, bottom, sides and door(s).
HANDLES. HLC-2127-6-6 and HLC-2127-9-9 models with full size, form-fitting recessed hand grips shall be mounted on each side of cabinet.
DOORS AND LATCHES. Flush mounted, field reversible, double pan, stainless steel vented doors shall have 1" thick fiberglass insulation. High temperature door gasket mounted on cabinet. Magnetic work flow door handle shall be full length, vertical and positive closing. HLC2127-6 is standard with horizontal work flow handle. Each door shall have two (2) heavyduty edgemount die cast hinges.
CASTERS. Maintenance free polyurethane tire casters in a configuration of two (2) rigid and two (2) swivel with brake. HLC-2127-6 is standard with all swivel casters. Casters shall have a reinforced yoke mounted to 10 gauge caster plate.
STANDARD FIXED RACK. Removable pair of one piece stainless steel racks with fixed spacings of 1.37" between pan slides. Each pan slide accommodates two (2) GN1/1 or 12" x 20" pans, or one (1) wire shelf 21" x 27" (514mm x 685mm). Three (3) shelves per cavity provided. One piece rack is easy to remove without the use of tools for cleaning.
OPTIONAL ADJUSTABLE SPACING. Welded rod-style tray slides are nickel plated for greater durability and sanitation. Fully adjustable / removable and designed to give secure bottom tray support. Removable stainless steel uprights shall be punched on 1.5" (38 mm) spacings for easy tray adjustment, and shall easily lift off heavy-duty stainless steel brackets without the use of tools for cleaning.
HEATED SYSTEM/CONTROLS. Radiant heat system shall include an Incoloy nickel-chromium alloy heating element. Electronic controls shall include an easy to read digital display of cabinet temperature (with recall capacity of temperature set point and actual cabinet temperature), equipped with a programmable low temperature alarm, master ON/OFF switch with power indicator light. Adjustable temperature range from 90°F to 190°F (32°C to 88°C).
ELECTRICAL CHARACTERISTICS. 3 wire grounded tri-directional power cord and plug, rear mounted for safety. See electrical data chart above for amperage and receptacle configuration. See electrical data chart for models that may require a dedicated circuit.
INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.
Provide with the following accessories:
