HLC-16S

HEATED HOLDING CABINETS
For 12"x 20" Pans, 18"x 13" Trays and GN 1/1 Containers
Radiant "HLC" Series

HLC-16S Spec Sheet

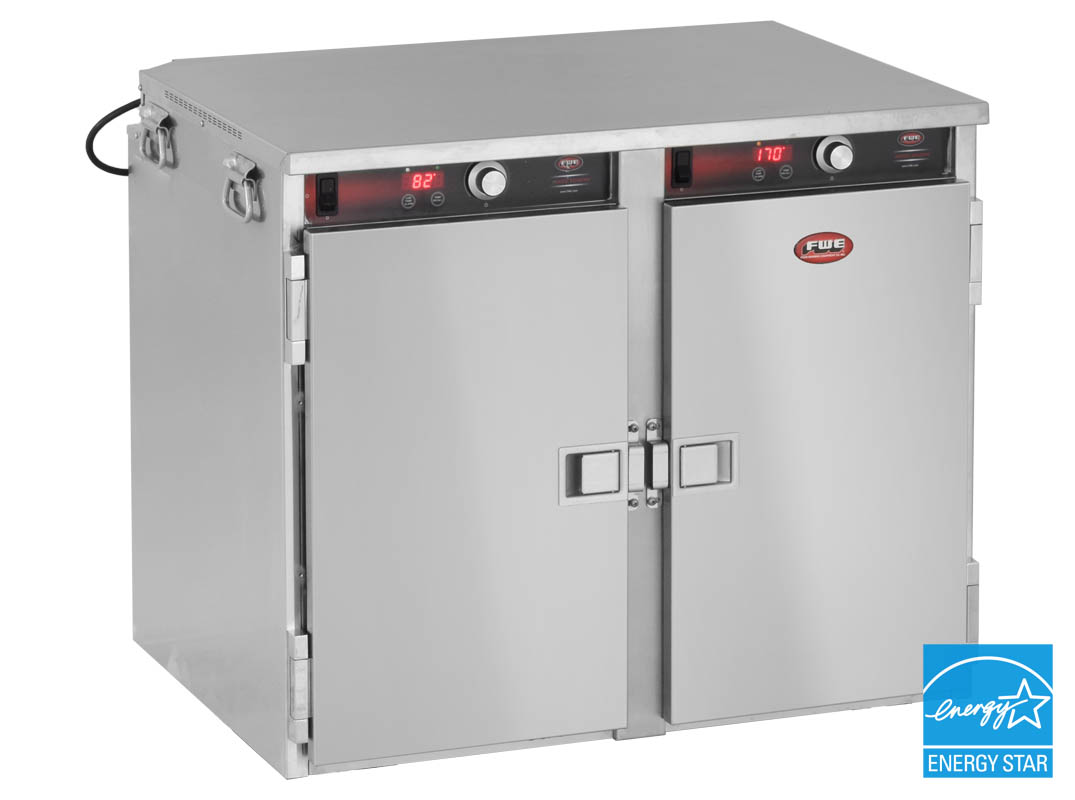

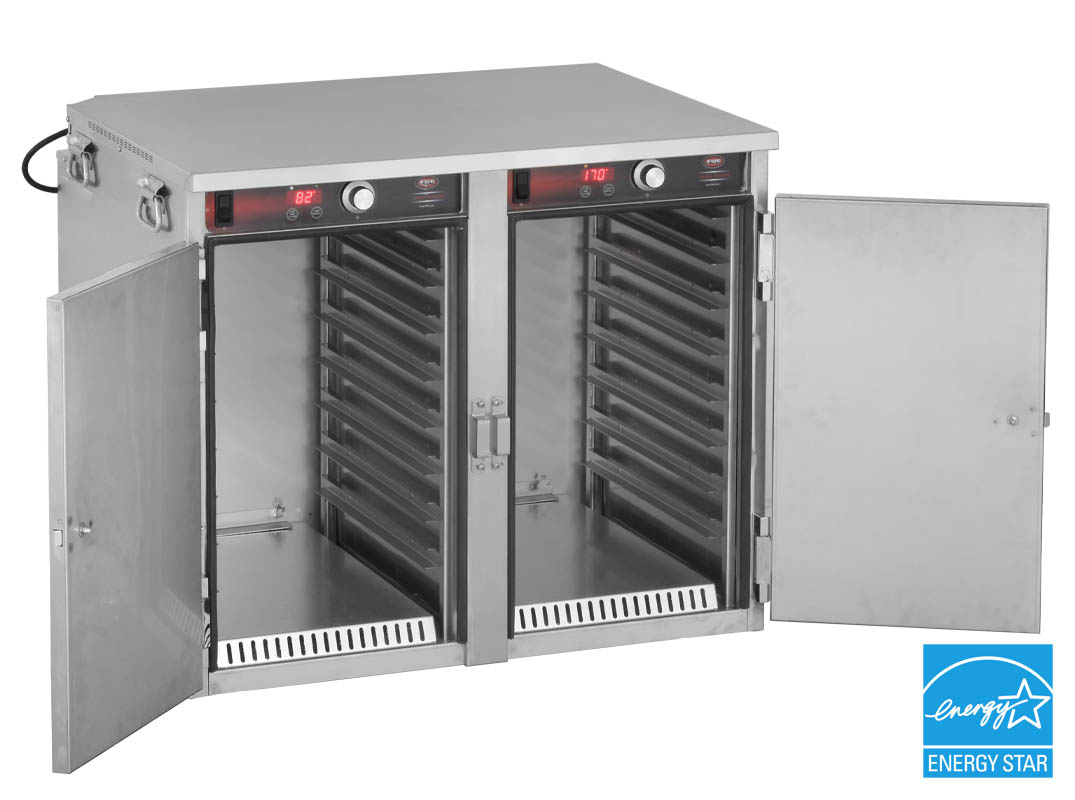

Compact and Mobile Heated Holding Cabinet

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

DESCRIPTION

FEATURES

OPTIONS & ACCESSORIES

Bumpers
Full Bumper - Heavy duty full perimeter bumper extends beyond doors and handles for added protection. The bumper is mounted to the base frame for added durability - the bumper is not used as the base frame. In this way, the bumper absorbs all the shock in transport, protecting the integrity of the construction.
Top Corner Bumpers - Top corner bumpers are a good option for those customers not needing the protection of a full bumper, but still require protection for walls and surrounding equipment.
Control Panel
Mechanical Controls - Mechanical controls
Door Hinge
Lift Off Hinges - Lift off hinges - door swings 270 degrees and lifts off for thorough cleaning
Doors
Pass Through Doors - Pass-thru doors create a convenient connection from preparation side to serving areas. With access from both sides of the cabinet staff is free to focus on customers, taking more orders and serving carry-outs during peak meal times
See-Thru Lexan Doors - See-thru lexan door provides high visability for hot and fresh items
Electrical
Upgraded Element - Upgraded Element
220-240 Volt - 220-240 Volt
Extra
Cord Winder Brackets - Cabinet mounted brackets allow for cord to be wrapped and out of the way when not in use
Graphic Wrap - Use your cabinet as a bill board! Catch the eye of your customer with your custom logo, message, or menu item images with a graphic wrap.
Security Packages - HDM security packages can be added to select cabinets to help increase the security and durability of your unit
Handles
Push Pull Handles - Push/pull handles allow for easy maneuvering. Handles are secured to the unit with reinforced backing plate. Ergonomically designed to be easy on the hands
Recessed Antimicrobial Hand Grips - Recessed antimicrobial hand grips detain illness causing pathogens

SHORT FORM SPEC

Specified unit shall be FWE Model No. HLC-16S, Heated Holding Cabinets.

CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 20 gauge polished exterior, 22 gauge stainless steel interior with easy-to-clean coved corners.

INSULATION. "Ultra-Guard" UG-26 high density fiberglass insulation throughout; top, back, bottom, sides and door(s).

DOORS AND LATCHES. Flush mounted, double pan, stainless steel doors shall have 1" thick fiberglass insulation. Single door models are field reversible. High temperature door gasket mounted on cabinet. Each door shall be equipped with a horizontal magnetic work flow handle. Countertop models, HLC-3, and HLC-4 are provided with a full length vertical work flow handle. Each door shall have two (2) heavy-duty edgemount die cast hinges.

CASTERS. Maintenance free polyurethane tire casters in a configuration of four (4) swivel with brake. Casters shall have a reinforced yoke mounted to a 18 gauge stainless steel sheet base. Caster mounting plate shall be secured to base with bolts. Countertop models HLC-3 and HLC-4 are not provided with casters

PAN SLIDES. Stainless steel racks shall be one piece die stamped channel-type pan slides at 2.625" (66.7 mm) spacings to accommodate either deep or shallow 12" x 20" or GN 1/1 pans (at varying capacities - see chart). Racks are removable without tools for cleaning. Racks shall lift off of heavy-duty stainless steel supports.

HEATED SYSTEM/CONTROLS. Radiant heat system shall include an Incoloy nickel-chromium alloy heating element. Electronic controls shall include an easy to read digital display of cabinet temperature (with recall capacity of temperature set point and actual cabinet temperature), equipped with a programmable low temperature alarm, master ON/OFF switch with power indicator light. Adjustable temperature range from 90°F to 190°F (32°C to 88°C).

ELECTRICAL CHARACTERISTICS. 3 wire grounded power cord and plug. See electrical data chart above for amperage and receptacle configuration. See electrical chart for models that require a dedicated circuit.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present. Countertop models have been designed and manufactured to be sealed to the counter. -NSF std 4 (Installation - Recommended using a FDA Food Grade caulk which is NSF and UL listed making it safe to use around all food operations)

HLC-16S

Compact and Mobile Heated Holding Cabinet

Interested in this model?

STANDARD MODEL FEATURES

OPTIONS & ACCESSORIES AVAILABLE FOR THIS MODEL

STANDARD FEATURES

OPTIONS & ACCESSORIES
