ETC-UA-4HD

Humidified Heated Non-Insulated Transport Cabinets

HUMIDIFIED HEATED HOLDING TRANSPORT CABINETS
Universal - Various Size Trays, Pans, and Gastro-Norm
Non-Insulated Humi-Temp "ETC-UA-HD" Series

ETC-UA-4HD SPEC SHEET

GET A QUOTE

HOW TO BUY

LIVE CHAT

ETC-UA-4HD Spec Sheet

Economy Universal Server keeps bulk foods hot, moist and oven fresh

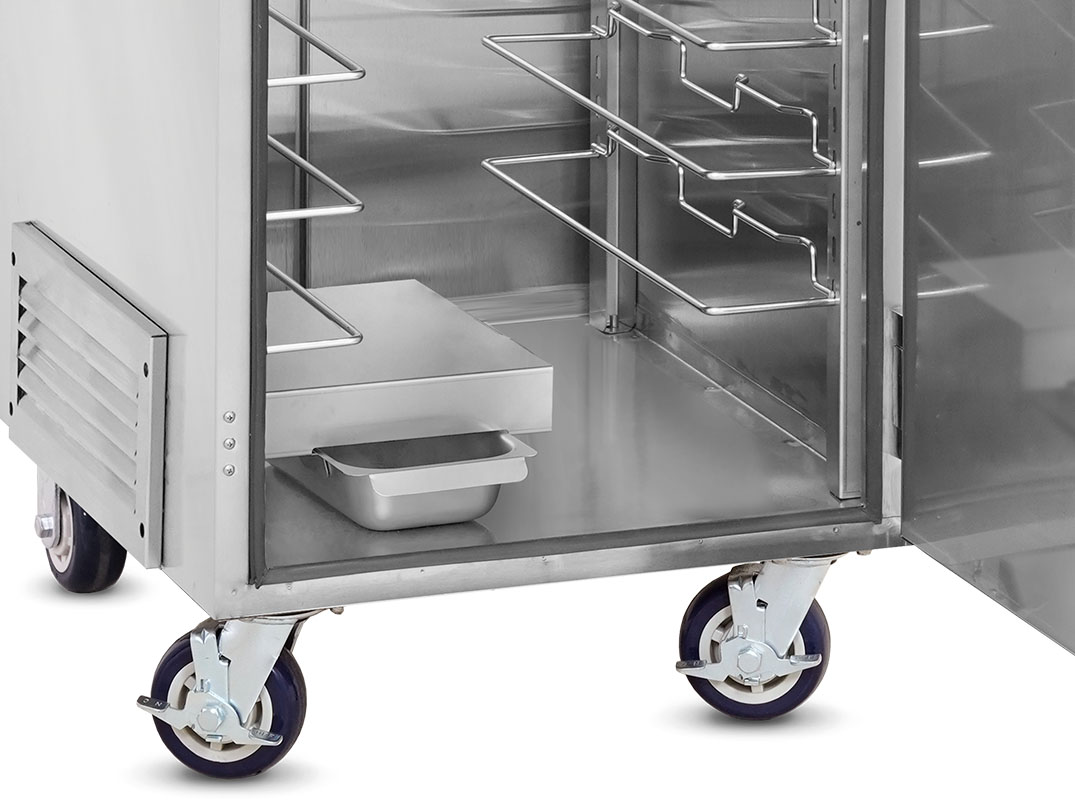

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

DESCRIPTION

ETC-UA-HD Series - Humi-Temp Heated Holding Cabinets:
Keep your food hot, fresh, and ready to serve with the ETC-UA-HD Series Humi-Temp Heated Holding Cabinets by FWE. Designed for versatility and reliability, these cabinets are ideal for maintaining the quality of your prepared foods in various foodservice settings.

1. Universal Tray Slide Design: Accommodate a wide range of tray and pan sizes, including 12" x 20", 18" x 26", and GN containers, with fully adjustable and removable tray slides for easy configuration and thorough interior cleaning.

2. Efficient Humidity Control: Maintain the perfect serving temperature and moisture level with FWE's patented Humi-Temp heat and humidity system. This advanced system circulates hot, moist air evenly throughout the cabinet, preventing hot and cold spots and keeping food fresh for hours.

3. User-Friendly Controls: Easily set and monitor temperatures with up-front, easy-to-read controls, including a full-range thermostat adjustable in °F or °C. The built-in thermometer provides continuous temperature readings, even when the unit is powered off.

4. Durable and Mobile Construction: Constructed with heavy-duty stainless steel and equipped with maintenance-free casters, the ETC-UA-HD Series is built to withstand the demands of a busy kitchen. The casters allow for easy movement and secure positioning, ensuring flexibility in any space.

5. Ergonomic Design: The magnetic workflow door handle is ergonomically designed to accommodate staff of varying heights, providing ease of use and efficient access to stored food.

6. Versatile Application: Ideal for bulk food holding in a variety of settings, from catering to institutional kitchens, the ETC-UA-HD Series ensures your food remains hot, moist, and oven-fresh until it's ready to serve.

Experience the reliability and versatility of the ETC-UA-HD Series Humi-Temp Heated Holding Cabinets, designed to meet the high standards of professional foodservice operations. Keep your food at its best, no matter the setting.

ETC-UA-4HD, Heated Holding, Transport & Serving
4 pair of slides are provided at standard 4.5" spacing. If required additional slides and shelves are available.

FEATURES

OPTIONS & ACCESSORIES

SHORT FORM SPEC

Specified unit shall be FWE Model No. ETC-UA-4HD, Humidified Heated Holding Cabinet.

CONSTRUCTION. Heliarc welded, single unit construction; 20 gauge polished stainless steel exterior, 22 gauge stainless steel inside bottom.

HANDLES. Form grip flush in wall hand grips recess mounted on each side of unit.

DOORS AND LATCHES. Flush mounted, field reversible, stainless steel insulated doors. High temperature gasket sealed; gasket shall be cabinet mounted. Magnetic work flow door handle shall be horizontal, and positive closing. Each door shall have two (2) heavy-duty edgemount die cast hinges. The hinge and latch mountings are reinforced with stainless steel backing plates.

CASTERS. Maintenance free polyurethane tire casters in a configuration of four (4) swivel with brake. Casters shall have a reinforced yoke mounted to 10 gauge caster plate. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular frame of the unit.

TRAY SLIDES. Welded rod-style tray slides are nickel plated for greater durability and sanitation. Fully adjustable / removable and designed to give secure bottom tray support. Removable stainless steel uprights shall be punched on 1.5" (38 mm) spacings, on center, for easy tray adjustment, and shall easily lift off of heavy-duty stainless steel brackets without the use of tools for cleaning.

HEATING SYSTEM / CONTROLS. Patented built-in "Humi-Temp" system shall include an Incoloy nickel-chromium alloy heating element and Hi-Temp, self-lubricated, impedance protected fan-cooled blower motor. Cabinet shall have humidifying chamber and drawer style baffled humidifier pan. Both shall be stainless steel and removable. Controls shall be up-front, recessed and shall include a full range thermostat adjustable to actual temperature. Thermostat shall include temperature scale marked in ten degree increments (F/C) from 90° to 190°F (32° to 88°C). An operational range thermometer, power supply light, thermostat cycling light, and 20 amp ON/OFF switch are also included.

ELECTRICAL CHARACTERISTICS. 3 wire grounded tri-directional power cord and plug, rear mounted for safety. See electrical data chart above for amperage, receptacle configuration, and for models that require a dedicated circuit.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.

Provide with the following accessories:
