ETC-24

NON-HEATED PATIENT TRAY DELIVERY CABINETS
15x 20, 14x 18, or 16x 22 Size Patient Trays, Single Deep
Single Deep - Non-Heated / Non-Insulated "ETC" Series

ETC-24 Spec Sheet

FWE's quiet ride, all stainless steel meal delivery carts provide maximum reliability and are perfect for locations that require concentration and tranquility

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

DESCRIPTION

FWE's quiet ride, all stainless steel meal delivery carts provide maximum reliability and are perfect for locations that require concentration and tranquility.

Versatility - fixed stainless steel tray racks hold wide varieties of trays, single deep. Fixed rack widths are easily adjustable on alignment pins to accommodate tray changes in your healthcare operations

Cleanability - stainless steel is favored by operators because it does not rust and is easy to clean. Other sanitary standard features include: antimicrobial magnetic door handles, lift-off doors and pitched center drain with plug

Mobility - even when fully loaded, these carts move with ease. 6 cart wash casters mounted to stress plates absorb shock during room service delivery. Hidden, magnetic door hold open feature allows for compact unloading and out-of-the-way in hallways

Noise suppression - FWE's patient tray delivery carts feature standard sound dampening components that eliminate metal-on-metal noise potential: latchless door design, rubber door stoppers, rack grommets and quiet ride casters

Hospitals need durable foodservice equipment. FWE's food delivery carts take the abuse of any transport application. Standard features include: tubular welded stainless steel frame, full perimeter bumper, heavy-duty stainless steel hinges, solid tubular push bar handle and vented ends (allows excess heat and moisture to escape)

Serve hot and cold foods together using pellet systems, insulated or disposable containers - prepare meals ahead of time, then easily and quietly transport to serving location

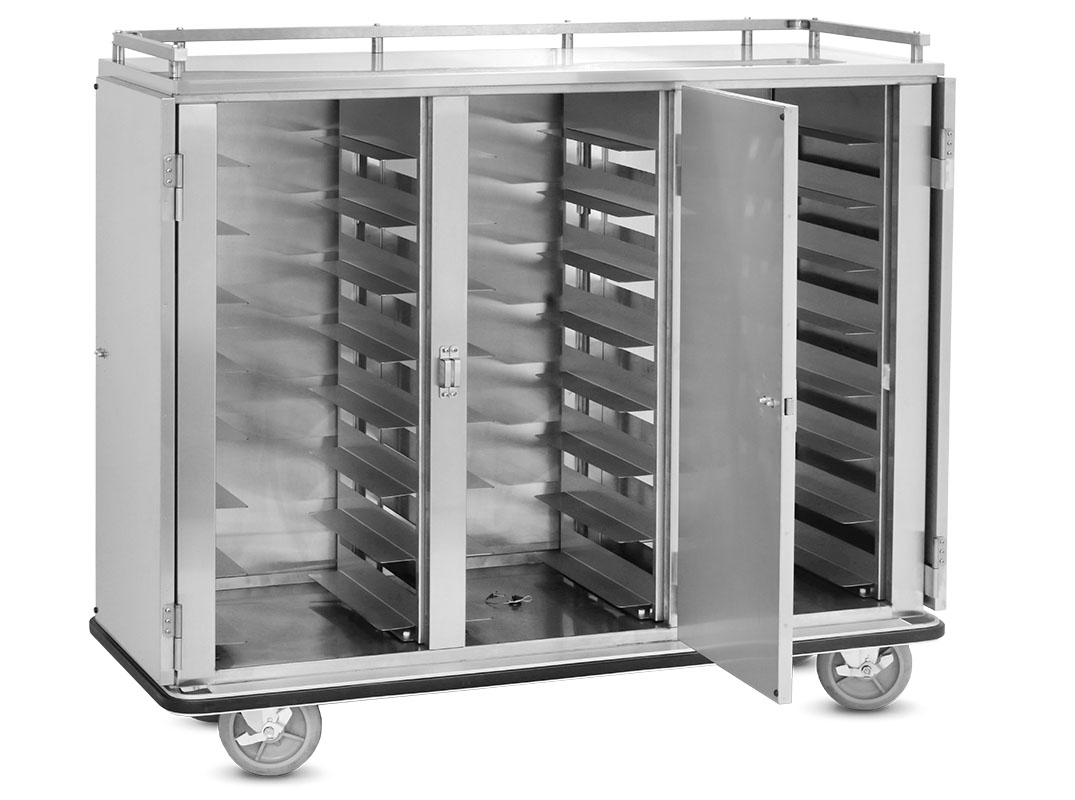

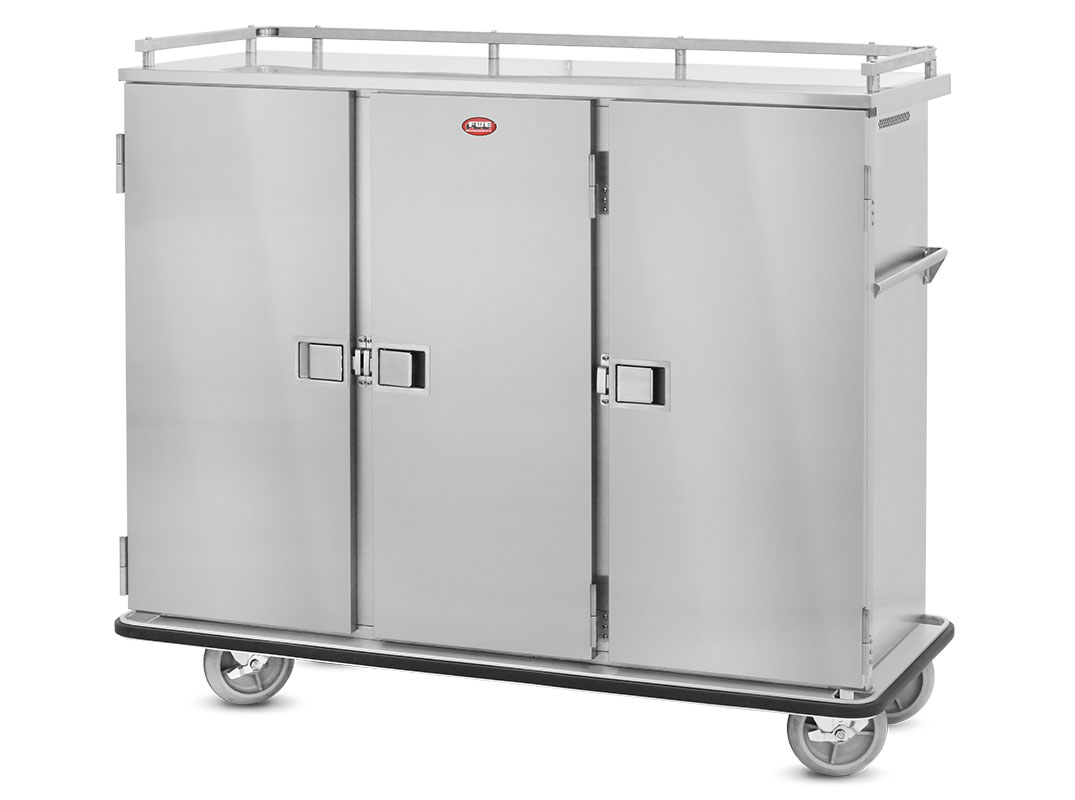

ETC-24, non heated patient tray delivery cabinet. Provided with (24) pair of tray slides at 5.25" spacings. Fixed slides accommodate 14" x 18", 15" x 20", 16" x 22" patient trays. Custom slide spacings available at time of order.

FEATURES

OPTIONS & ACCESSORIES

SHORT FORM SPEC

Specified unit shall be FWE Model No. ETC-24, Non-Heated Patient Tray Delivery Cabinets.

CONSTRUCTION. Heliarc welded, single unit construction of 18 gauge stainless steel. Welded tubular base frame shall be 1 square, heavy gauge stainless steel tubing, with 18 gauge stainless steel reinforcing plates at corners and fittings. Cabinets shall have vented ends on each side of the unit.

HANDLES. Heavy-duty, 1" diameter tubular stainless steel push handles, mounted at each end of the unit. ETC-6 model has one handle mounted to rear.

BUMPER. Solid 1.5" wide continuous wraparound aluminum channel, bolted to frame, with snap-in, non-marking replaceable vinyl cushion. Full perimeter bumper extends beyond doors, handles, etc., for added protection. Shall be Continuous, with corner cut-outs to facilitate cleaning.

DOORS AND LATCHES. Flush mounted, stainless steel insulated doors. Each door shall have two (2) heavy-duty, lift-off, 12 gauge stainless steel hinges. The hinge mountings are reinforced with stainless steel backing plates. Each door shall be equipped with a positive closing, flush-in-door, antimicrobial magnetic door handle. Each door shall be equipped with a hidden, magnetic door hold open feature.

CASTERS. ETC-6 shall have maintenance free, Cart Wash polyurethane tire casters with stainless steel bearing. Two-door and three-door models shall have maintenance free, Master Casters with sealed precision ball bearing. ETC-6, ETC-12, ETC-16, ETC-20 shall have a caster configuration of two (2) rigid and two (2) swivel with brake. ETC-18, ETC-24, ETC-30 shall have a caster configuration of two (2) rigid and four (4) swivel with brake. Casters shall have a reinforced yoke mountedto 10 gauge caster plate. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular frame of the unit.

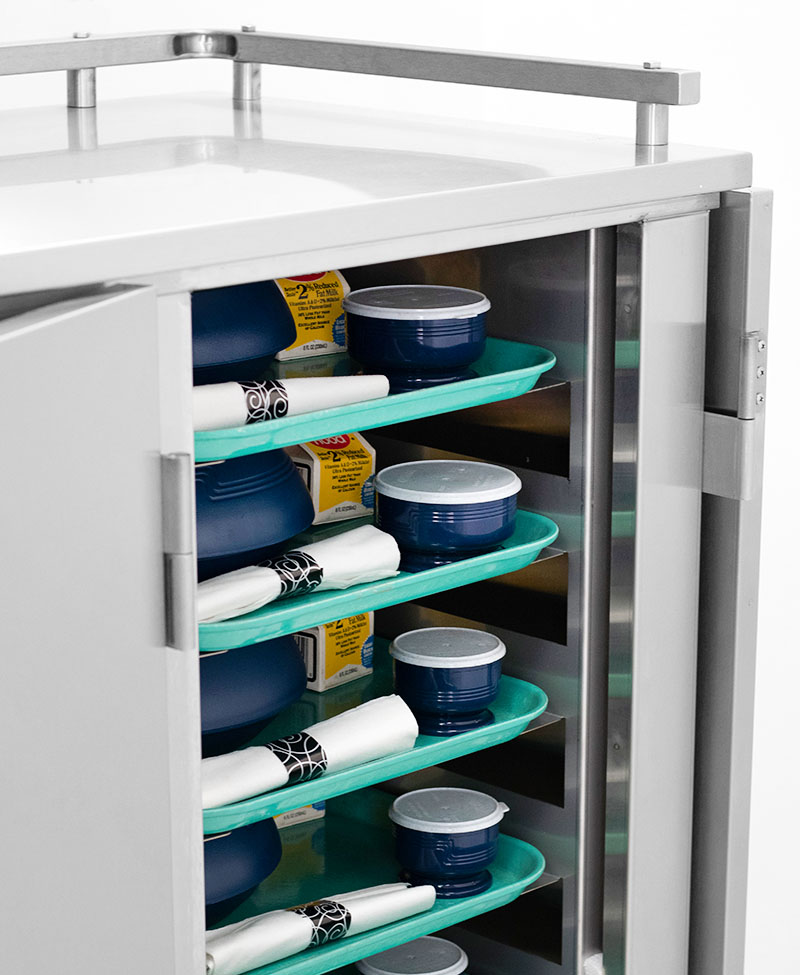

TRAY SLIDES. Fully welded, unitized tray slide assemblies shall be heavy gauge stainless steel, channels fixed-in-place at 5.25" spacings and shall be capable of field adjustability to accommodate one (1) 14" x 18", 15" x 20", or 16" x 22" tray per pair of tray slides. Each rack assembly contains four (4) sets of alignment holes that mount to fixed top and bottom alignment pins welded to cabinet floor and ceiling. Racks with custom tray spacings are available (consult factory).

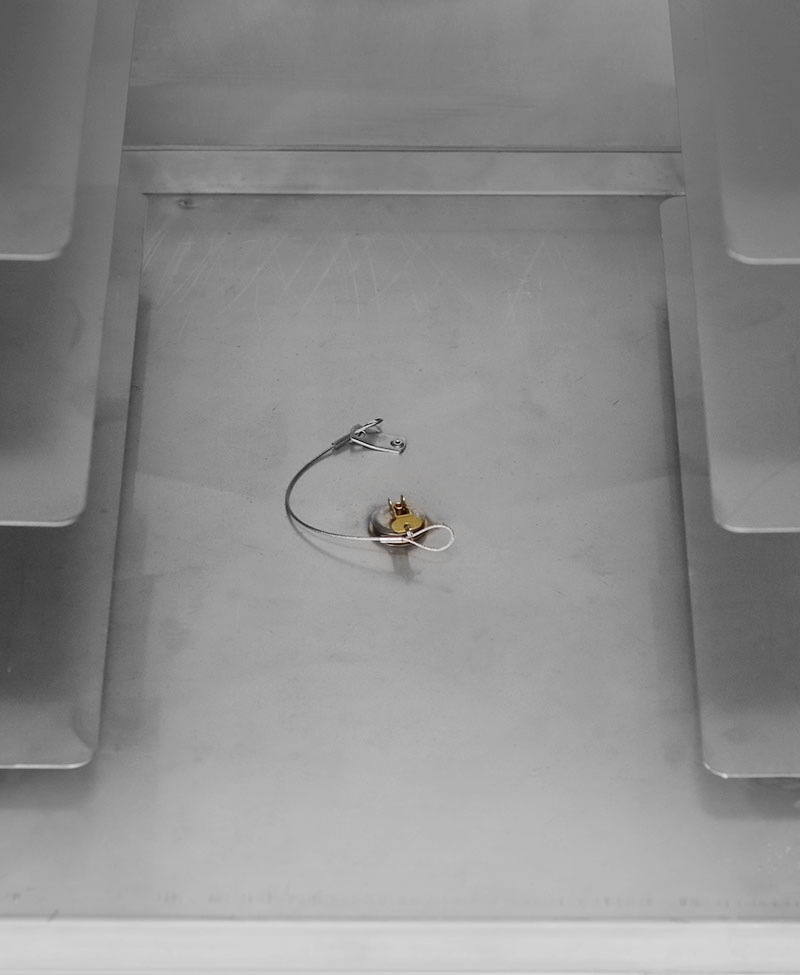

PITCHED DRAIN. Pitched center drain with plug to facilitate thorough cleaning of interior. Models with one (1) and three (3) doors shall have one (1) pitched center drain. Models with two (2) doors shall have two (2) pitched center drains.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.

Provide with the following accessories:

LITERATURE

FWE products may be covered under one or more of the following U.S. patents: 288,299;238,300;3,952,609;4,192,991.
