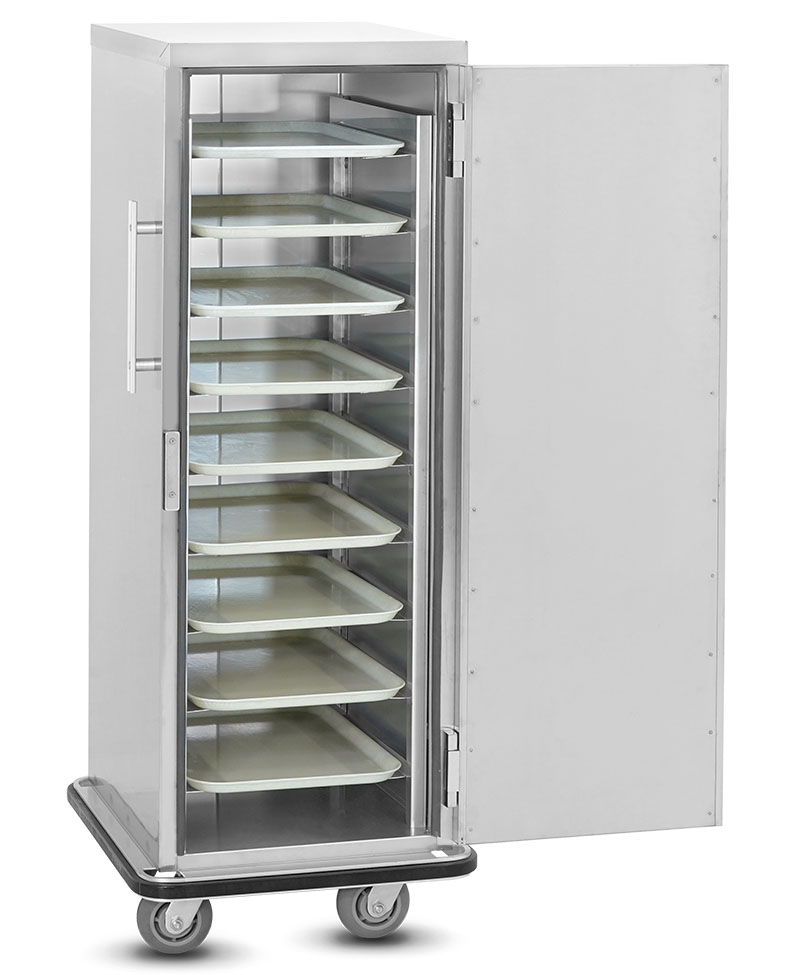

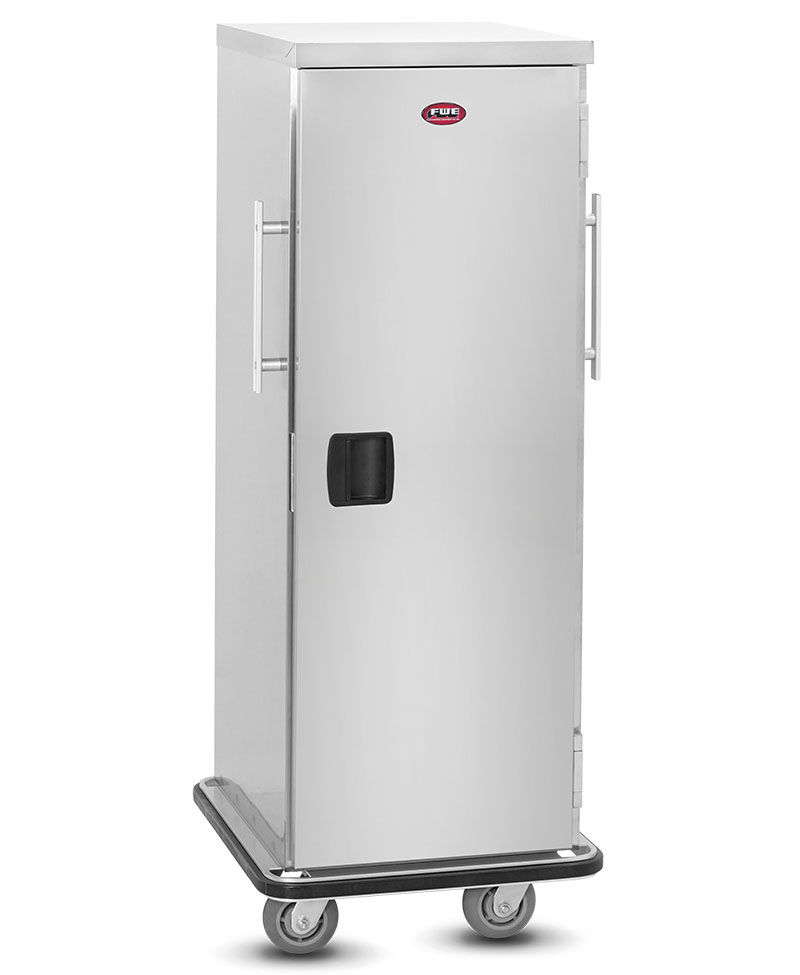

ETC-1418-9INS

NON-HEATED PATIENT TRAY DELIVERY CABINETS
Insulated - for 14"x18", 15"x20", or 10"x14" Size Patient Trays
Non-Heated / Insulated "ETC-1418-INS" Series

ETC-1418-9INS Spec Sheet

Reliable, quiet ride, all stainless steel patient tray delivery cabinet

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

DESCRIPTION

ETC-1418-INS Series - Non-Heated, Insulated Patient Tray Delivery Cabinets

The ETC-1418-INS Series by FWE offers a durable, quiet, and efficient solution for transporting patient meals in healthcare settings. With insulated, non-heated cabinets, these carts are ideal for serving hot and cold foods together using a variety of containers, from pellet systems to disposable trays.

1. Versatile Tray Compatibility: Accommodates multiple tray sizes, including 14" x 18", 15" x 20", and 10" x 14", with stainless steel tray racks designed for easy handling and maximum storage.

2. Quiet and Smooth Transport: Equipped with FWE's multi-terrain, noise-suppressing casters, these carts deliver meals quietly and smoothly, ensuring a pleasant experience for patients and healthcare staff alike.

3. Built for Durability: Constructed with a tubular welded stainless steel frame, a full perimeter bumper, and heavy-duty push bar handles, the ETC-1418-INS Series is designed to withstand daily use in demanding healthcare environments.

4. Enhanced Hygiene and Safety: Features antimicrobial SaniGuard door handles to support sanitation protocols and protect against microbial growth, crucial in healthcare settings.

5. Effortless Maneuverability: Even when fully loaded, these carts are easy to maneuver, with quiet casters mounted on reinforced stress plates that absorb shocks during transport.

The ETC-1418-INS Series combines functionality, durability, and patient-centered design, making it an essential asset in hospitals and healthcare facilities.

FEATURES

OPTIONS & ACCESSORIES

Bumpers
Top Bumper - Top mounted heavy duty full perimeter bumper extends beyond doors and handles for added protection during transport.
Caster
All Swivel Casters - All swivel casters allow for greater maneuverability. Great for tight turns or severe corners (such as on and off trucks or narrow hallways).
A drawback to the all swivel configuration is that it is harder to control the direction of the equipment when rolled in a straight line.
Center Floor Lock - Undercarriage lock-down keeps mobile equipment securely in place by gently lifting the unit high enough so the casters do not touch the ground.
Must be used with 6" casters.
Doors
Pass Through Doors - Pass-thru doors create a convenient connection from preparation side to serving areas. With access from both sides of the cabinet staff is free to focus on customers, taking more orders and serving carry-outs during peak meal times
See-Thru Lexan Doors - See-thru lexan door provides high visability for hot and fresh items
Extra
Menu Card Holder - Door mounted frame to display menu card
Beverage Urn Angles - Beverage Urn Angles (available on select models)
Dry Erase Board - Door mounted dry erase board for menu changes or cabinet identification
Top Guard Rail - 3 sided or 4 sided top guard rails allow for the top of the cabinet to be used for storage
Grounding Strap - Grounding strap
Cold Plate Cartridge - Keep cold foods cold during transport with FWE's heavy duty cold plate cartridge
Security Packages - HDM security packages can be added to select cabinets to help increase the security and durability of your unit
X-Factor Frame - X-Factor Frame
Handles
Tubular Push Handles - Heavy duty stainless steel push pull handles are secured to the unit with reinforced backing plate. Ergonomically designed to be easy on the hands
Hinging
Alternate Door Swing Configurations - Alternate door swing configurations are available for multi door cabinets

SHORT FORM SPEC

CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 20 gauge polished exterior, 22 gauge stainless steel interior with easy-to-clean coved corners. Welded tubular base frame shall be 1" square, heavy gauge stainless steel tubing, with 10 gauge stainless steel reinforcing plates at corners.

INSULATION. "Ultra-Guard" UG-26 high density fiberglass insulation throughout; top, back, bottom, sides, and door(s).

HANDLES. Heavy-duty push bar handles, solid formed 1" x .375" thick; mounted at each end of unit. Mountings reinforced with stainless steel channel.

BUMPER. Solid 1.5" wide continuous wraparound aluminum channel, bolted to frame, with snap-in, non-marking replaceable vinyl cushion. Full perimeter bumper extends beyond doors, handles, etc., for added protection. Shall be continuous, with corner cut-outs to facilitate cleaning.

DOORS AND LATCHES. Flush mounted, stainless steel insulated doors. High temperature gasket sealed; gasket shall be cabinet mounted. Each door shall have two (2) heavy-duty edgemount die cast hinges reinforced with stainless steel backing plates. Each door shall be equipped with a positive closing, flush-in-door, antimicrobial SaniGuard magnetic door handle.

CASTERS. Quiet ride multi-terrain casters in a configuration of two (2) rigid and two (2) swivel with brake. Casters shall have a reinforced yoke mounted to 10 gauge caster plate. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular frame of the unit.

TRAY SLIDES. Unitized tray slide assemblies shall be heavy gauge stainless steel, channels fixed in place at 5.25" spacings. Assemblies are designed to accommodate one (1) 14"x18", one (1) 15"x20" or two (2) 10"x14" trays. Removable stainless steel tray racks shall easily lift off of heavy duty stainless steel supports without the use of tools. Racks with custom tray spacings are available at time of order (consult factory).

ETC-1418-9INS

Reliable, quiet ride, all stainless steel patient tray delivery cabinet

Interested in this model?

STANDARD MODEL FEATURES

OPTIONS & ACCESSORIES AVAILABLE FOR THIS MODEL

STANDARD FEATURES

OPTIONS & ACCESSORIES
