ETC-1314-80

STACKING PRISONER TRAY SERVER
13" X 14" Insulated Compartment Trays, Double Deep
Double Deep - Non-Heated / Non-Insulated Correctional "ETC-1314" Series

ETC-1314-80 Spec Sheet

Correctional heated transport and holding carts are designed to meet demanding environments with security features to protect staff members and inmates

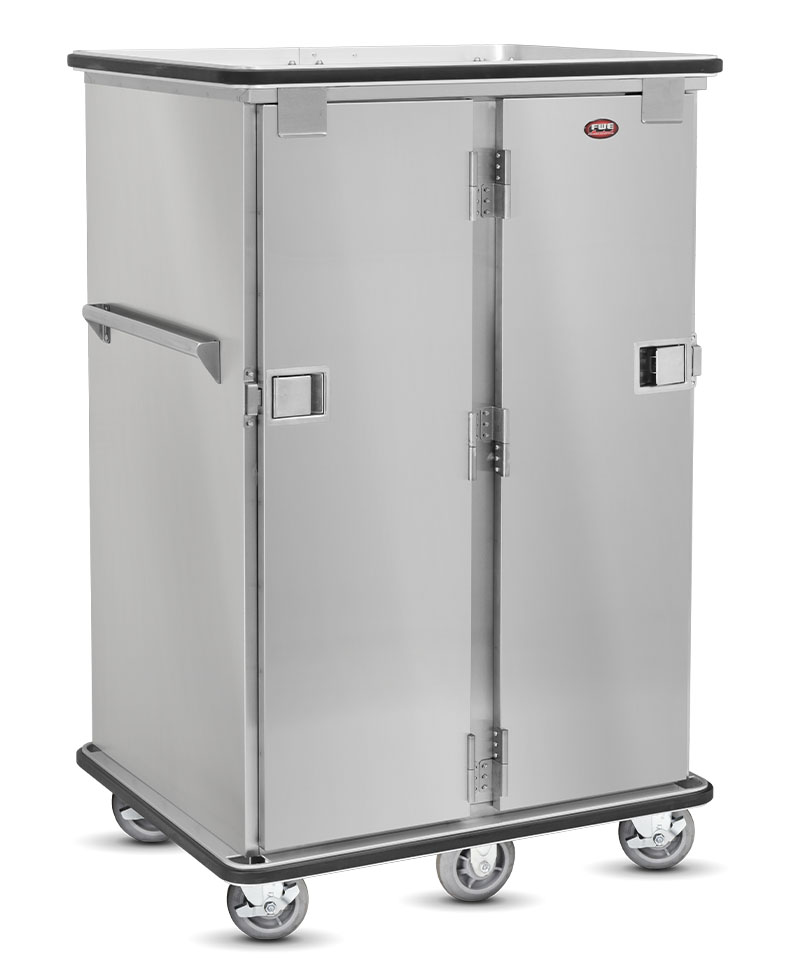

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

DESCRIPTION

ETC-1314-80, non heated prisoner tray delivery cabinet. Provided with one center shelf. Designed to accommodate 13" x 14" insulated compartment trays.

FEATURES

OPTIONS & ACCESSORIES

Caster
Larger & Upgraded Casters - Larger Casters
All Swivel Casters - All swivel casters allow for greater maneuverability. Great for tight turns or severe corners (such as on and off trucks or narrow hallways).
A drawback to the all swivel configuration is that it is harder to control the direction of the equipment when rolled in a straight line.
Door Latch
Key Locking Door Latch - Heavy duty door latch with key locking capabilities
Magnetic Door Latch - Heavy duty full grip magnetic door latch
SaniGuard Door Handle - Standard recessed Antimicrobial Sani guard door handle - detains illness causing pathogens
Extra
Cold Plate Cartridge - Keep cold foods cold during transport with FWE's heavy duty cold plate cartridge
Grounding Strap - Grounding strap
Beverage Urn Angles - Beverage Urn Angles (available on select models)
Drain Plug - Drain Plug
Menu Card Holder - Door mounted frame to display menu card
Dry Erase Board - Door mounted dry erase board for menu changes or cabinet identification
Graphic Wrap - Use your cabinet as a bill board! Catch the eye of your customer with your custom logo, message, or menu item images with a graphic wrap.
Hinging
Alternate Door Swing Configurations - Alternate door swing configurations are available for multi door cabinets

SHORT FORM SPEC

Specified unit shall be FWE Model No. ETC-1314-80, Stacking Prisoner Tray Server.

CONSTRUCTION. Heliarc welded, single unit construction of 18 gauge stainless steel. Welded tubular base frame shall be 1 square, heavy gauge stainless steel tubing, with 10 gauge stainless steel reinforcing plates at corners and fittings.

HANDLES. Heavy-duty, 1" diameter tubular stainless steel push handles, mounted on each end of the unit.

SUPER-DUTY BUMPER. Solid, 1.5" high, wraparound aluminum channel, bolted to frame, with snap-in, non-marking replaceable vinyl cushion. Full perimeter bumper extends beyond doors, handles, etc., for added protection. Shall be continuous, with corner cutouts to facilitate cleaning. Super-Duty Bumper shall be made of thicker 0.25" aluminum and be wider at 4.875"

DOORS AND LATCHES. Each stainless steel, insulated door shall have three (3) heavy-duty, 12 gauge stainless steel hinges. Each door
shall be equipped with a positive closing, flush-in-door, stainless steel paddle latch. The hinge and latch mountings are reinforced with stainless steel backing plates. Each door shall be provided with padlock compatible transport/security latch (padlock not included).

CASTERS. Maintenance free, Multi-Terrain casters with sealed precision ball bearing, in a configuration of two (2) rigid and four (4) swivel with brake. Casters shall have a reinforced yoke mounted to 10 gauge caster plate. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded-in-place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular frame of the unit.

PITCHED DRAIN. Pitched center drain with plug to facilitate thorough cleaning of interior. Models shall have one (1) drain per door.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.

Provide with the following accessories:

LITERATURE

FWE products may be covered under one or more of the following U.S. patents: 288,299;238,300;3,952,609;4,192,991.
