DC-252-12

HEATED BANQUET TRANSPORT & SERVE CABINET
Heated Rotary Dish/Plate Cabinet for Up to 12" Plates
CONVECTED "HDC" SERIES

DC-252-12 Spec Sheet

Perfect for banqueting or buffet plate make up lines

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

DESCRIPTION

Profitability increases with satisfied customers and repeat customers - and one way to accomplish this is by serving hot appetizing meals. Compact, fully enclosed, non-heated rotary dish dolly stores and transports up to 12" diameter clean dishes. Adjustable / removable wire rods create four compartment segments that help separate and protect plates while in storage. Additional rods can be conveniently positioned to adjust to multiple plate sizes, which increases the capacity of smaller plates - or to accommodate future changes in your operation.

Ideal for hotel / resorts, banquet operations, cafeteria, buffet and restaurant establishments, these non-heated rotary dish cabinets are built stronger and perform better than any other on the market today - period! E-Z access rotating base, along with front door and flip-back top access, allow for easy loading and unloading of all dishes. The flip-back cover design allows the front door to be opened even when the top is closed.

Low profile design conserves valuable floor space by conveniently fitting under a 36" counter, along with all stainless steel construction that includes heavy duty abuse resistant welded tubular base frame, heavy duty polyurethane casters for easy mobility (even when fully loaded), makes the DC-252-12 a true performer in any operation.

FEATURES

Agency Approvals
UL EPH - UL EPH recognizes products certified to meet environmental and public health standards. The UL EPH logo shows the word "Classified" above the UL mark, which indicates that the product complies with ANSI/NSF standards, in addition to other applicable codes.
Bumpers
No Bumper - No bumper
Caster
5" Casters - 5" Heavy-duty casters - polyurethane casters are long lasting and used for easy maneuverability, even when fully loaded
All Swivel Casters - All swivel casters allow for greater maneuverability. Great for tight turns or severe corners (such as on and off trucks or narrow hallways).
A drawback to the all swivel configuration is that it is harder to control the direction of the equipment when rolled in a straight line.
EZ Roll Heavy Duty Poly Caster - The EZ Roll Casters are standard on FWE cabinets and provide moderate floor protection with a high weight capacity.
EZ roll casters are shock absorbing and roll easier under heavy loads.

Available in 5", 6" and 8" diameters.
Mobile
Construction
Stainless Steel / Insulated - Constructed of stainless steel, with welded base frame for added strength and durability - fully insulated cabinet and door provide energy efficient heating and longer holding times
Door Count
1 Door
Door Hinge
Stainless Steel Hinges - Stainless Steel Hinges
Door Latch
Magnetic Work Flow Door Handle - Magnetic work flow door handles ergonomically accommodates kitchen staff and servers of varying heights
Doors
Full Stainless Steel Door - Flush mounted, stainless steel insulated doors
Extra
Warranty - Two year limited warranty
Low Profile - Low profile design, conveniently fits under 36" counter and can easily be stored when not in use
Heat System
Non Heated - Non Heated
Hinging
Hinges on Right and Left Side - Hinges on the right and left side

OPTIONS & ACCESSORIES

Bumpers
Full Bumper - Heavy duty full perimeter bumper extends beyond doors and handles for added protection. The bumper is mounted to the base frame for added durability - the bumper is not used as the base frame. In this way, the bumper absorbs all the shock in transport, protecting the integrity of the construction.
Bottom Corner Bumpers
Caster
Larger & Upgraded Casters - Larger Casters
Handles
Push Pull Handles - Push/pull handles allow for easy maneuvering. Handles are secured to the unit with reinforced backing plate. Ergonomically designed to be easy on the hands
Heat System
HDC Heat System - Fan-cooled blower motor for heated air distribution

SHORT FORM SPEC

Specified unit shall be FWE Model No. DC-252-12, Heated Banquet Transport & Serve Cabinet.

CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 20 gauge polished exterior, 22 gauge stainless steel interior with easy-to-clean coved corners. Welded tubular base frame shall be 1" square, heavy gauge stainless steel tubing, with 10 gauge stainless steel reinforcing stress platesat corners.

INSULATION. "Ultra-Guard" UG-26 high density fiberglass insulation throughout; top, back, bottom, sides, and door(s).

DOORS AND LATCHES. Flush mounted, stainless steel insulated doors with two (2) heavy-duty hinges. Door latch shall be horizontal, magnetic workflow.

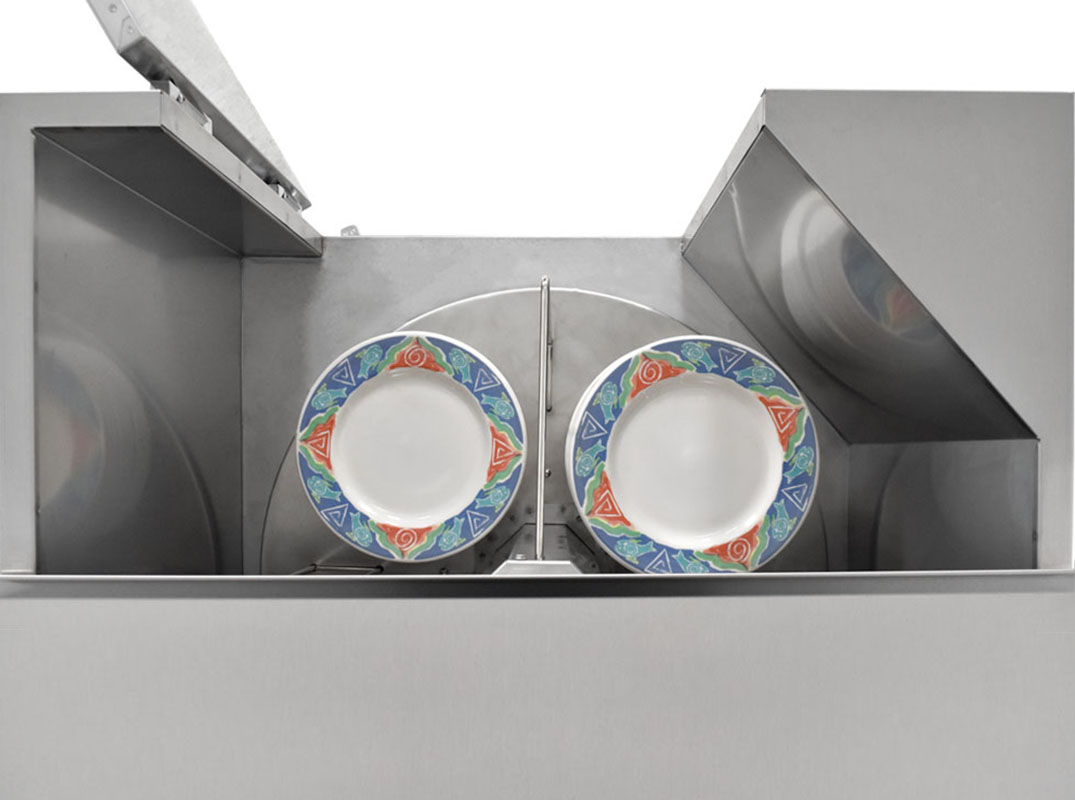

SLIDING TOP. To allow easy top loading and unloading of dishes, with top hand grip lift.

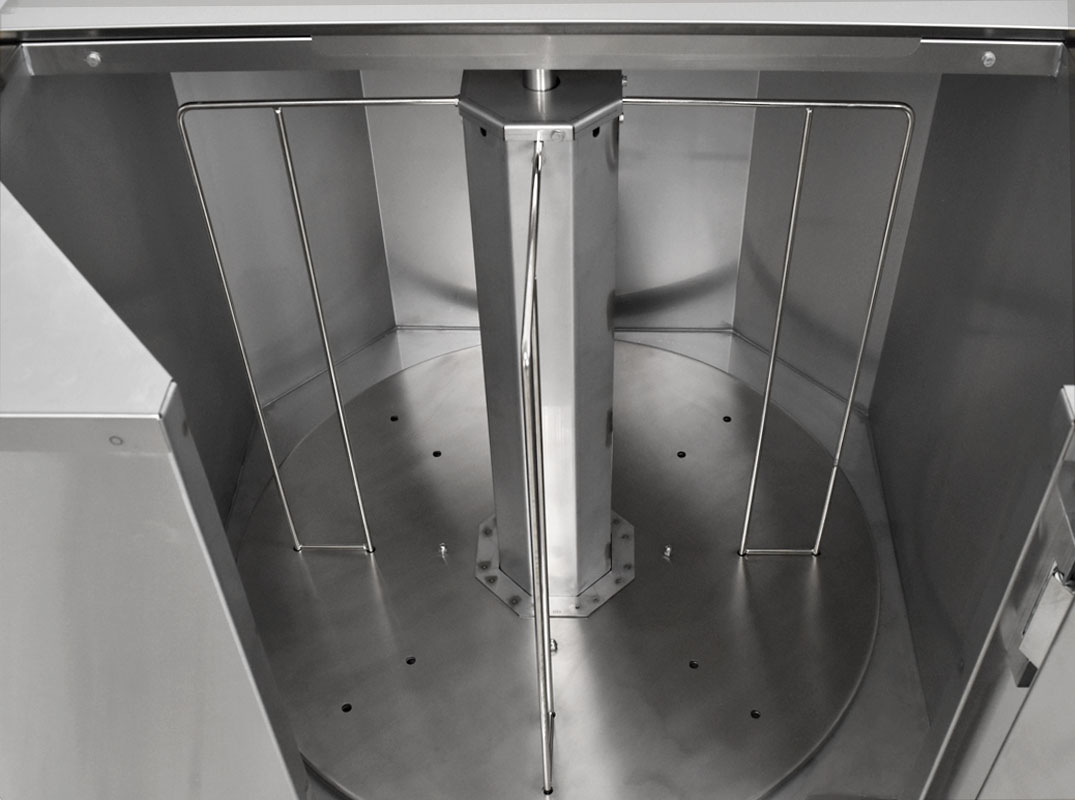

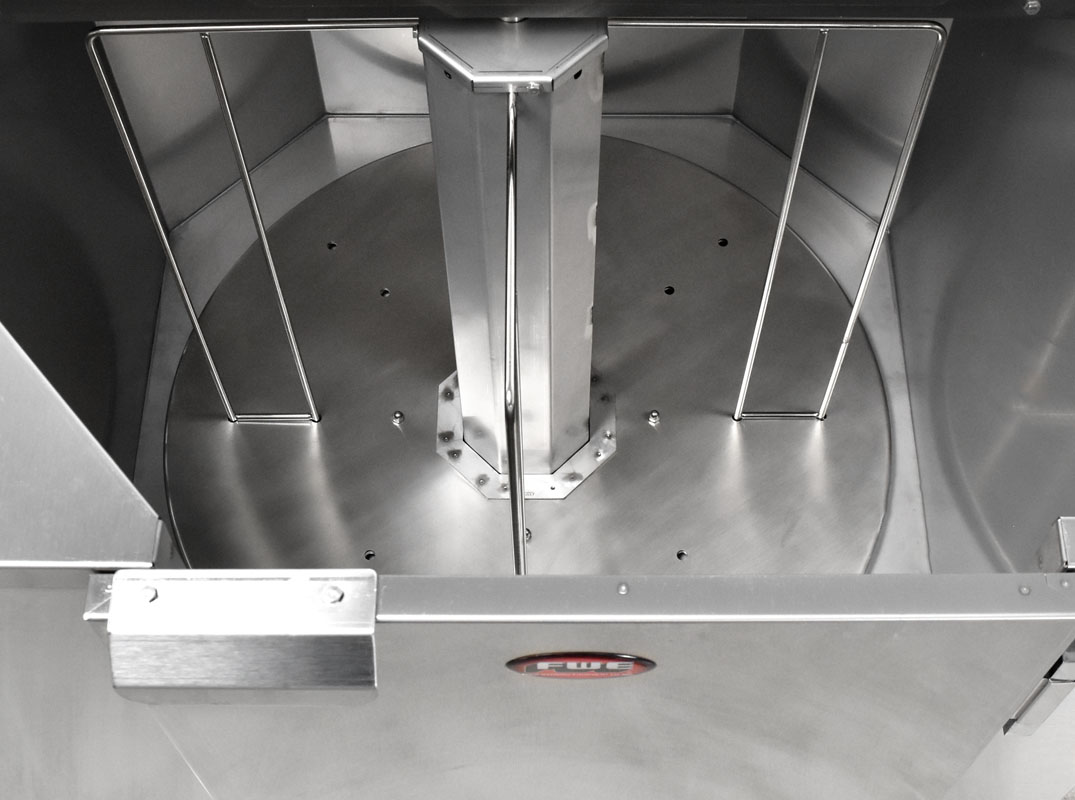

ROTATING DISH RACK. Cabinet shall include rotating base for easy access for loading and unloading of dishes.

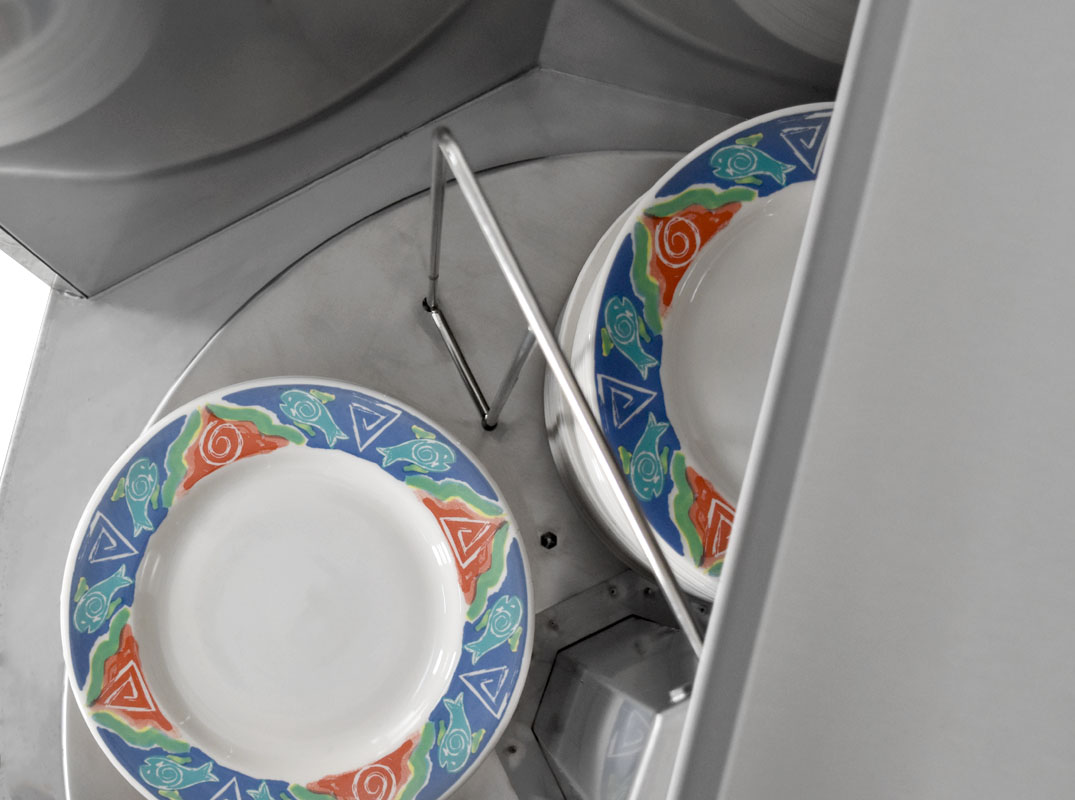

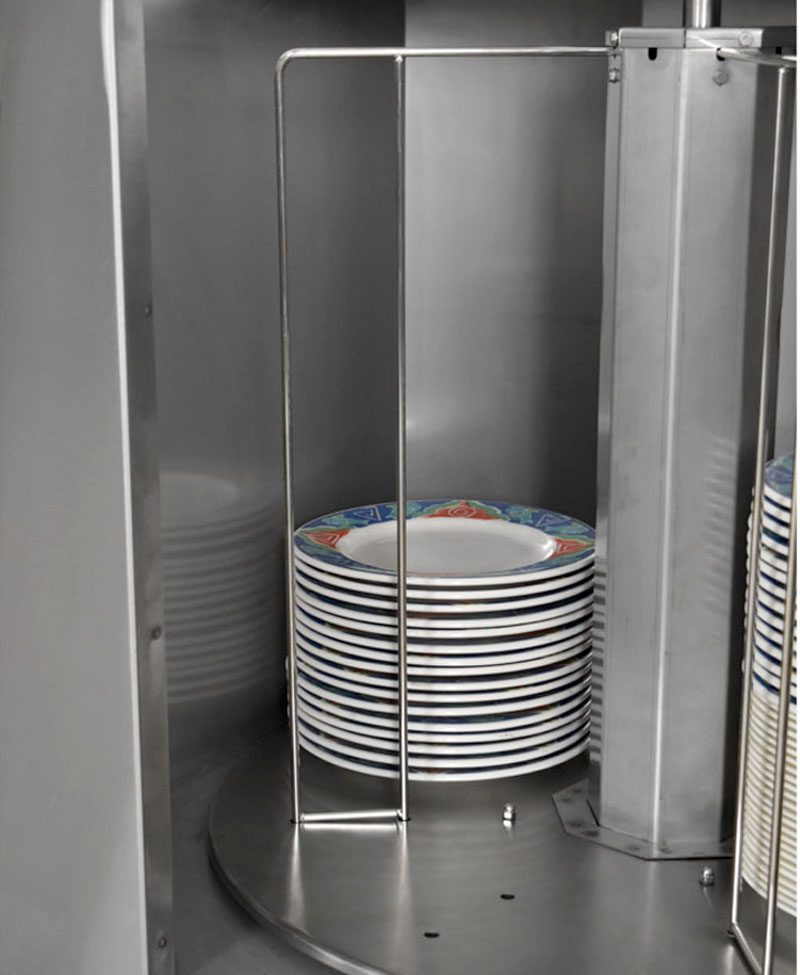

PLATE DIVIDER SLIDES. Four (4) welded rod-style plate slides are adjustable to fit up to 12" plates standard and removable for greater sanitation. Fully adjustable / removable design to give secure plate alignment. Up to four (4) additional dividers can be added to accommodate for separate smaller size plates.

CASTERS. Maintenance free polyurethane tire casters in a configuration of four (4) swivel with brake. Casters shall have a reinforced yoke mounted to 10 gauge caster plate. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular frame of the unit.

HEAT CONTROLS. Long life Incoloy nickel chromium alloy heating element; Hi-Temp, self-lubricated, impedance protected fan cooled blower motor for heated air distribution. Controls shall be up-front and shall include temperature sensor and master ON / OFF 20 amp lighted power switch, adjustable temperature control to 202°F (94.5°C).

ELECTRICAL CHARACTERISTICS. 3 wire grounded tri-directional power cord and plug with cord winding brackets, rear mounted for safety. See chart above for amperage and receptacle configuration. Dedicated circuit.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.

Provided with the following accessories:
