R-AS-10

MOBILE AIR SCREEN REFRIGERATORS
For Various Size Trays and Pans
REFRIGERATED "ASU" AND "R-AS" AIR SCREEN SERIES

R-AS-10 Spec Sheet

Improve workflow - Air Screen allows door to be kept open during tray makeup

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

DESCRIPTION

Air Screens Quick Start Guide

ASU & R-AS Series - Refrigerated Air Screen Cabinets
Smart, Reliable Cooling Solutions for Busy Kitchens
1. Dependable Open-Door Operation - Built for foodservice operations that demand quick access and consistent performance, the ASU & R-AS Series keeps food at safe temperatures, even with the door open. The ASU-10 handles extended service periods with a 4-hour open-door window, while the R-AS-10 offers reliable cooling for up to 90 minutes. Whether you're prepping trays in high-volume kitchens or assembling meals for transport, these cabinets deliver the cooling power you need without interruption.
2. Easy-to-Use Digital Controls - Simplify temperature management with intuitive digital controls designed for accuracy and ease of use. Both models feature adjustable set points, real-time temperature displays, clean condenser reminders, and door open alarms to keep your operation running smoothly. An on-demand defrost cycle ensures optimal performance without unnecessary downtime.

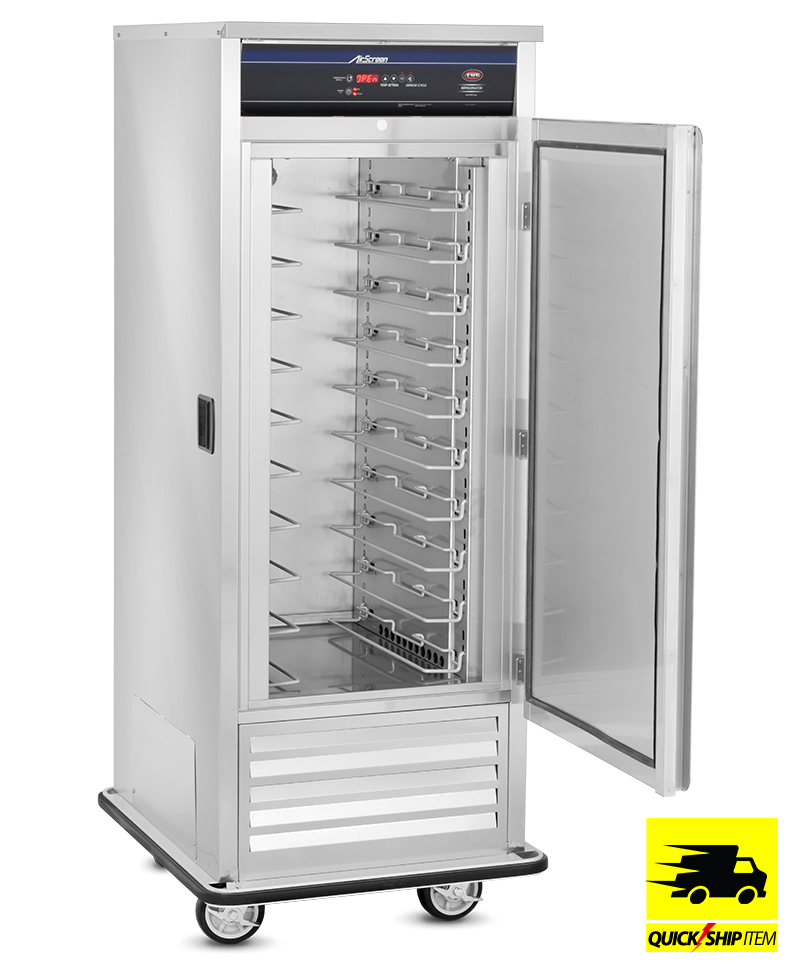

3. Versatile Tray Slide System - Designed to handle a variety of trays and pans, these cabinets offer fully adjustable, tilt-capable tray slides that securely support even heavy food items. The tilt feature lets bottles and cans roll forward for easy access, and the removable slides make cleaning simple-perfect for busy kitchens where efficiency matters most.
4. Tough and Mobile Construction - Built with durable stainless steel and reinforced frames, the ASU & R-AS Series is engineered to withstand the rigors of high-traffic foodservice environments. Recessed handles, push bars, and heavy-duty 6" casters provide superior maneuverability, ensuring these units can go wherever you need them most-whether in tight prep areas or across large catering venues.
5. Energy-Efficient Design - Both models are equipped with environmentally friendly refrigerants and energy-saving features to reduce operating costs without sacrificing performance. These sustainable designs not only keep your food safe but also minimize your carbon footprint.
6. Options to Fit Your Needs - Tailor your unit to fit your specific needs with customizable features like sliding space-saver doors, security packages, and left-hand door hinging. With flexible options, these units can adapt to any foodservice operation, no matter the size or setup.

R-AS Quick Start Guide

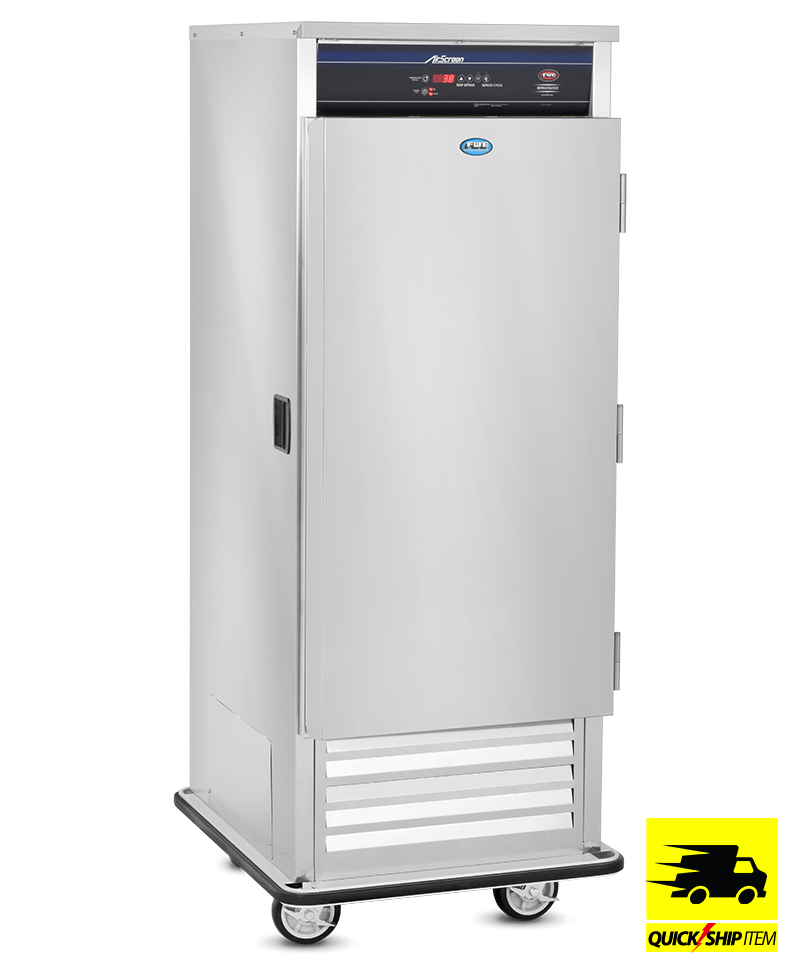

R-AS-10 - Refrigerated Air Screen Cabinet (10 Slides)
The R-AS-10 combines the convenience of air screen technology with the dependability you need in busy kitchens. Designed for up to 90 minutes of open-door operation, it's ideal for quick service lines and meal prep areas. With smart digital controls, tilt-capable tray slides, and a durable, mobile design, it offers flexibility and ease of use. Whether for catering, institutional use, or food prep stations, the R-AS-10 is a reliable, efficient cooling solution.

FEATURES

OPTIONS & ACCESSORIES

SHORT FORM SPEC

Specified unit shall be FWE Model No. R-AS-10, Mobile Air Screen Refrigerator.

CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 20 gauge polished exterior, 22 gauge stainless steel interior with easy-to-clean coved corners. Welded tubular base frame shall be 1" square, heavy gauge stainless steel tubing, with 10 gauge stainless steel reinforcing stress plates at corners.

INSULATION. High efficiency insulation throughout cabinet and door.

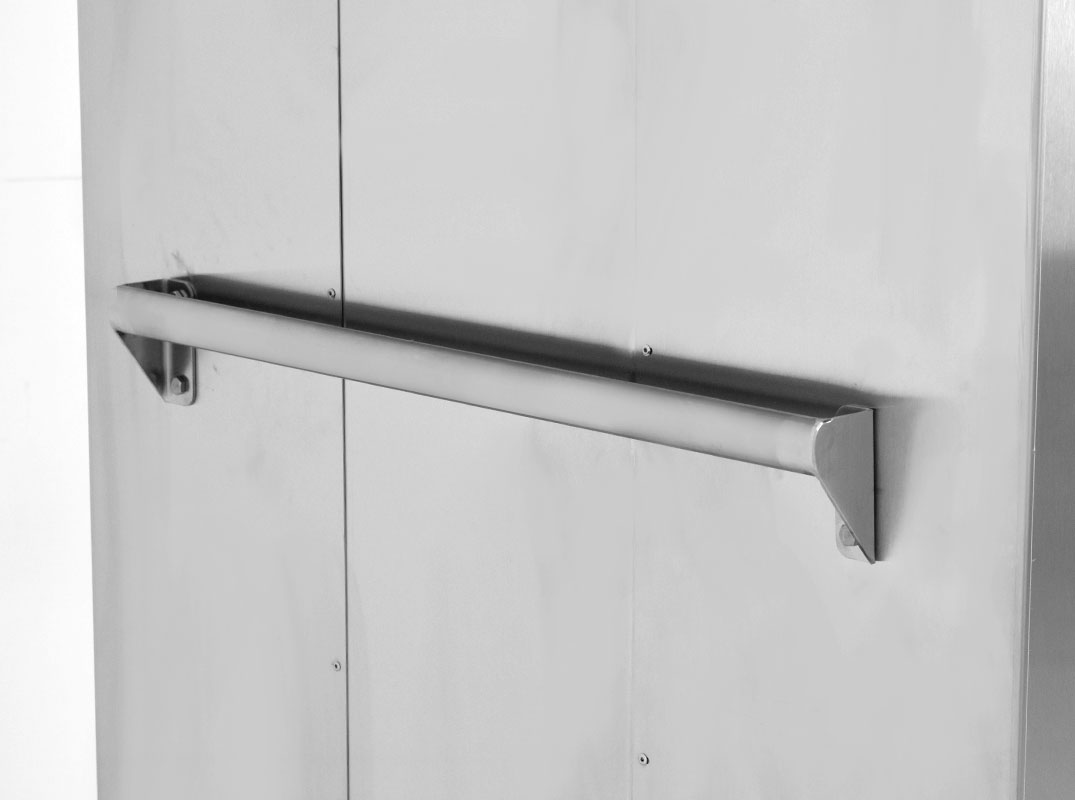

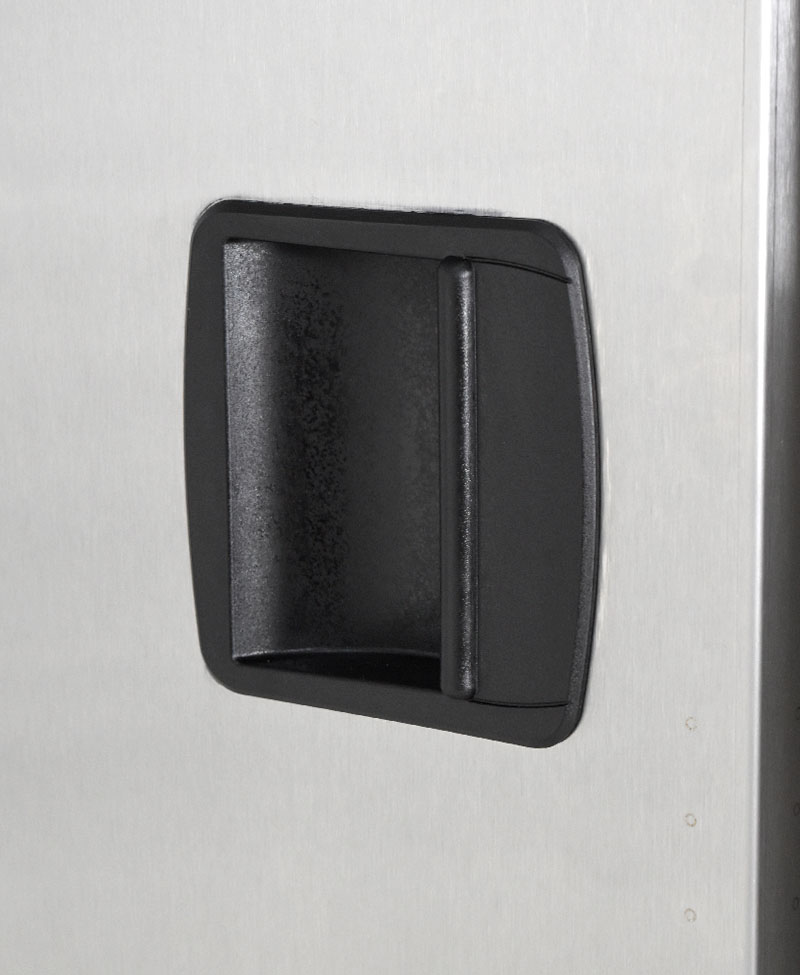

HANDLES. Form grip flush-in-wall antimicrobial hand grips recess mounted on each side of unit and one rear mounted tubular handle.

DOORS AND LATCHES. Flush mounted, stainless steel insulated doors shall be gasket sealed. Each door shall have three (3) heavyduty, 12 gauge stainless steel hinges and a magnetic work flow door handle. The hinge mountings are reinforced with stainless steel backing plates

BUMPER. Solid continuous wrap around aluminum channel, bolted to frame, with snap in, non-marking replaceable vinyl cushion. Full perimeter bumper extends beyond doors, handles, etc., for added protection. Shall be continuous with corner cut-outs to facilitate cleaning.

CASTERS. Maintenance-free polyurethane tire casters in a configuration of two (2) rigid and two (2) swivel with brake. Casters shall have a reinforced yoke mounted to 10 gauge caster plate. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular frame of the unit.

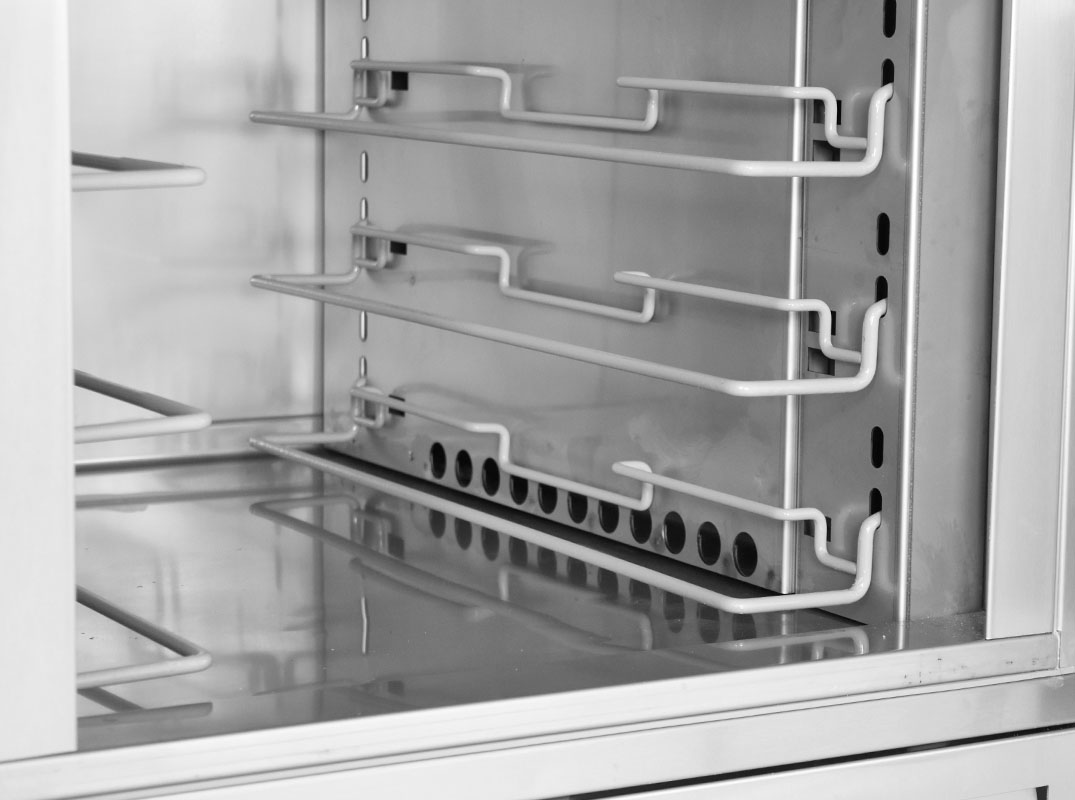

TRAY SLIDES. Secure bottom tray support with tilt mount feature, removable for cleaning. Tray slides are polymer coated, tested and approved to meet the NSF International Corrosion Resistance requirements under NSF Std 51/ASTM b117 Sections 6.2 and 6.2.1.

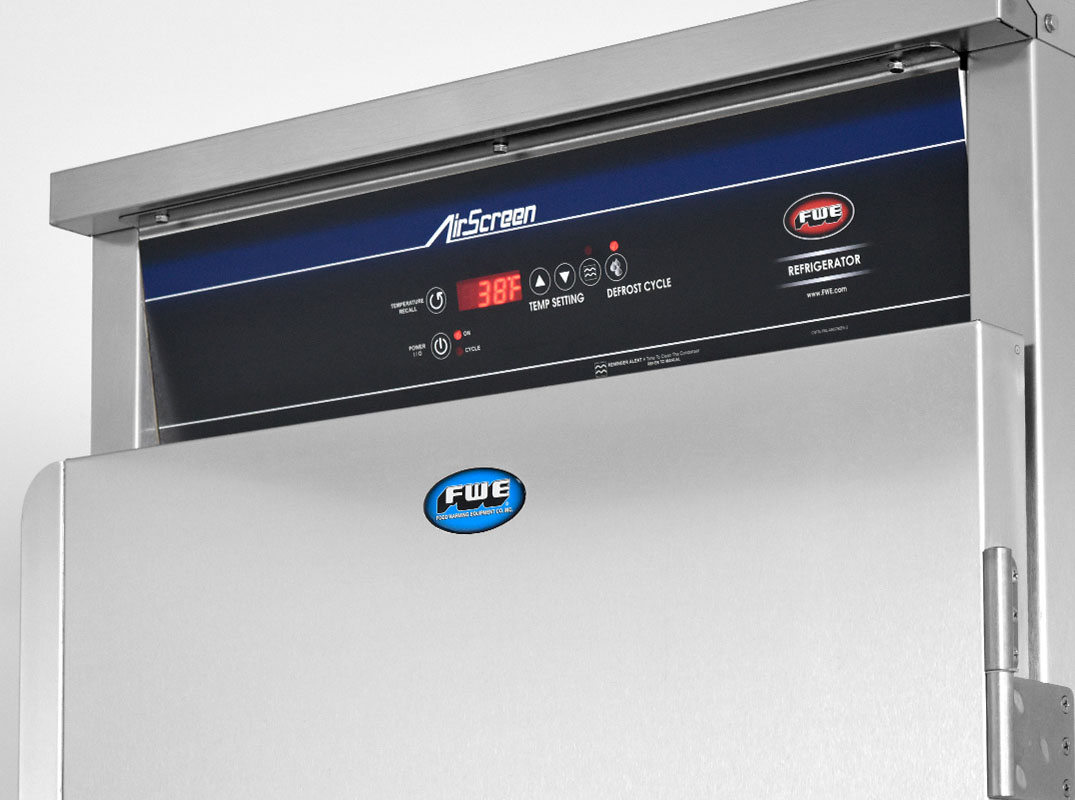

AIR SCREEN SYSTEM / CONTROLS. A 1/2 HP Hi-torque condensing unit, air-cooled closed system assures optimum performance in high ambient room temperatures. It has a receiver charged with environmentally safe non-CFC R-448A refrigerant. A thermal expansion valve (for pressure control) also a filter dryer. A high CFM multi-fan design, oversized coated evaporator coil to pressure/displacement curtain of air. A unique air circulation pattern within the food zone maintains proper temperatures during periods of open-door use. Controls shall include an easy to read digital display for cabinet temperature (with recall capability of temperature set point and actual cabinet temperature). Easy to read master ON/ OFF button with power indicator light, cooling cycle indicator light, maximum allowed time* with door open warning and automatic shutdown, clean condenser reminder light, on-demand defrost with a defrost cycle indicator light. Defrost element shall be 750 Watts. Adjustable temperature range from 33°F to 38°F (.6°C to 3.3°C) factory preset temperature is 38°F (3.3°C). Minimum full load circuit requirement 15 amp. See electrical data chart above for running amps.
*ASU-10 model has a maximum allowable 240 minute door open before operator warning and automatic shutdown. *R-AS-10 model has a maximum allowable 90 minute door open before operator warning and automatic shutdown.
Environmental conditions such as humidity will affect maximum allowable door open operation.

COMPRESSOR / SIZE. Air-cooled 1/2 HP condenser assures optimum performance in high ambient room temperatures.

ELECTRICAL CHARACTERISTICS. 3 wire grounded power cord and plug, rear mounted for safety.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present. Refer to operations manual for further details.

Provide with the following accessories:
