ETC-2333-18PH

PROOFER & HEATED HOLDING CABINETS
Non-Insulated - Holds Various Sized Donut Screens up to 23" x 33"
PROOFER/HEATER "ETC-2333-PH" SERIES

ETC-2333-18PH Spec Sheet

Cabinet proofer to enhance quality and time-saving strategies for proofing donuts, cinnamon rolls, and similar products

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

DESCRIPTION

ETC-2333-PH Series - Proofer-Heater Holding Cabinets:
Streamline your baking process with the ETC-2333-PH Series Donut Proofer and Heated Holding Cabinets by FWE. Built to handle high volumes, these cabinets offer the ideal solution for maintaining the quality and freshness of your baked goods.

1. Accommodates Popular Donut Screen Size:
Effortlessly handle 23" x 33" donut screens with fixed, removable stainless steel racks that are built for durability and easy cleaning.

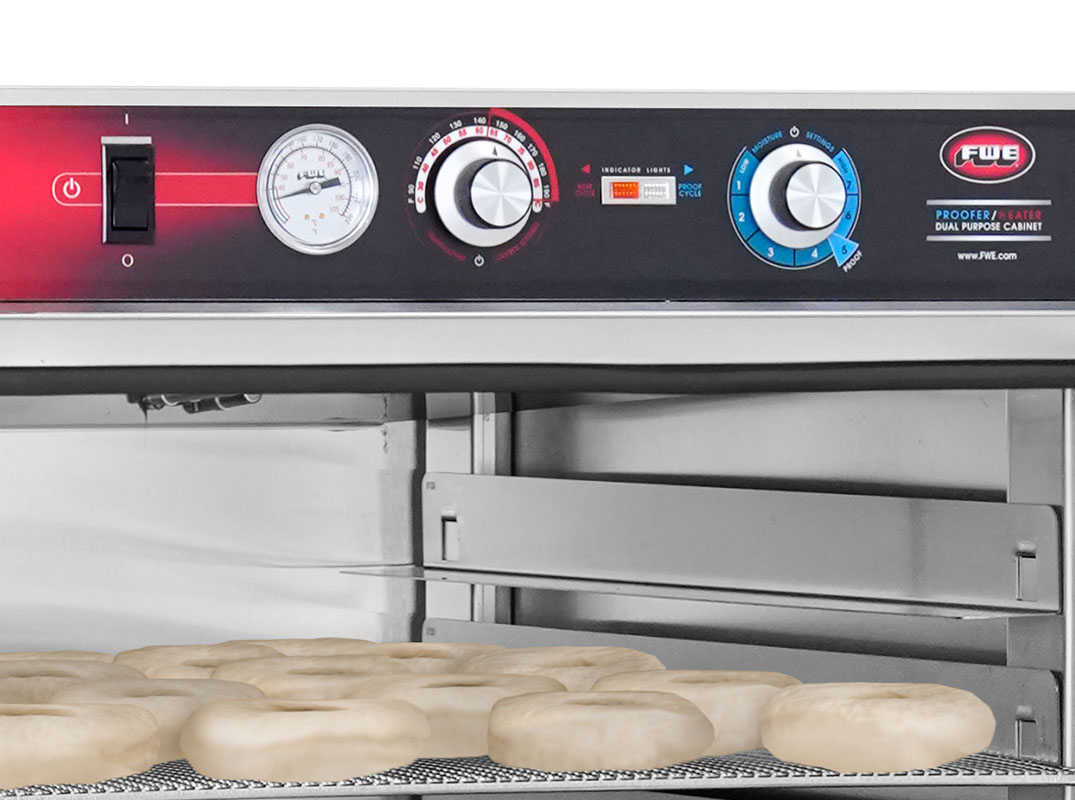

2. User-Friendly Control Panel:
Easily manage air moisture and temperature with a user-friendly mechanical control panel, featuring separate controls for precise adjustments.

3. Consistent Proofing Environment:
Create the perfect proofing environment with high humidity and low heat, ensuring your donuts rise consistently for that perfect texture.

4. Durable Construction:
Built with stainless steel, these cabinets are designed to withstand the rigors of a busy kitchen. The sloped inside top prevents condensation from dripping onto your products, maintaining quality.

5. Visibility and Flexibility:
Monitor your dough's progress through see-thru Lexan doors, which are field reversible for easy installation in any kitchen layout.

6. Easy Maintenance:
The removable humidity pan and fixed racks make cleaning and maintenance straightforward, allowing you to keep your cabinet in top condition with minimal effort.

Experience the efficiency and reliability of the ETC-2333-PH Series, designed to meet the high demands of commercial baking. Keep your production running smoothly and your products at their best with this versatile proofer and heated holding cabinet.

FEATURES

OPTIONS & ACCESSORIES

Caster
Larger & Upgraded Casters - Larger Casters
All Swivel Casters - All swivel casters allow for greater maneuverability. Great for tight turns or severe corners (such as on and off trucks or narrow hallways).
A drawback to the all swivel configuration is that it is harder to control the direction of the equipment when rolled in a straight line.
Control Panel
Electronic Controls - Electronic controls featuring easy to read digital display of cabinet temperature (with recall capacity of temperature set point and actual cabinet temperature), equipped with a programmable low temperature alarm, master ON/OFF switch with power indicator light.
Door Count
3 Doors
Door Latch
Key Locking Door Latch - Heavy duty door latch with key locking capabilities
Magnetic Door Latch - Heavy duty full grip magnetic door latch
Doors
Glass Doors - Full view glass doors allow complete visibility of product without opening the door, available in full and Dutch
Dutch Doors - Dutch doors help maintain cabinet temperature during peak serving times
Electrical
Mechanical Timer - Keep track of your tasks with the reliable mechanical timer. This classic wind-up timer requires no batteries and offers precise countdown functionality for cooking, baking, and more. With a simple twist, set the time and ensure you stay on schedule.
220-240 Volt - 220-240 Volt
208 Volt
Extra
Cord Winder Brackets - Cabinet mounted brackets allow for cord to be wrapped and out of the way when not in use
Handles
Tubular Push Handles - Heavy duty stainless steel push pull handles are secured to the unit with reinforced backing plate. Ergonomically designed to be easy on the hands
Slides and Shelves
Custom Rack Spacing - Rack spacing can be customized to accommodate your operational needs
Shelves - Versatile with removable shelves to accommodate a wide variety of items
Stainless Steel Removable Tray Slides

SHORT FORM SPEC

Specified unit shall be FWE Model No. ETC-2333-5PH, Heated Holding Proofing Cabinet.

CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 20 gauge polished exterior.

DOORS AND LATCHES. Flush mounted, field reversible, see-thru Lexan door shall be high temperature gasket sealed; gasket shall be cabinet mounted. Each door shall have two (2) heavy-duty edgemount die cast hinges and a magnetic work flow handle. The hinge and latch mountings are reinforced with stainless steel backing plates.

CASTERS. Maintenance free polyurethane tire casters in a configuration of four (4) swivel with brake. Casters shall have a reinforced yoke mounted to 10 gauge caster plate. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular frame of the unit.

FIXED RACK. Removable pair of one piece stainless steel racks with fixed spacings of 3" between slides. Each tray slides accommodates one (1) 23" x 33" dough screen or one (1) 23" x 23" dough screen. One piece rack is easy to remove without the use of tools for cleaning.

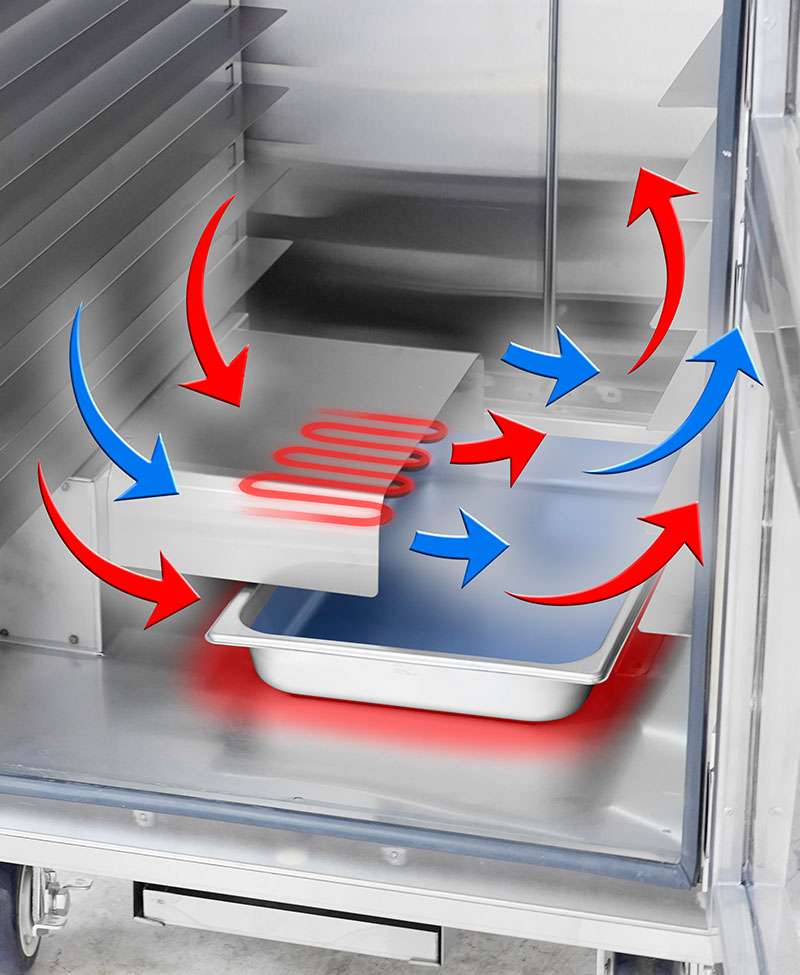

PROOFING SYSTEM/CONTROLS. Built in humidified holding system shall include two (2) separate long life Incoloy nickel-chromium alloy heating elements per cavity; separate, adjustable controls shall be provided for each function. One to control the interior air temperature, and one to control the interior air moisture. An oversized stainless steel water reservoir shall be removable for ease of cleaning/sanitation. System shall have a Hi-Temp, self-lubricated, impedance protected fan-cooled blower motor for moist air distribution. Controls shall be up-front, recessed and shall include a full range thermostat adjustable to actual temperature. Thermostat shall include temperature scale marked in ten degree increments (F/C) from 90° to 190°F (32° to 88°C). An operational range thermometer, adjustable moisture control (Low to High) with "P" to indicate "Proof" position, 20 amp ON/OFF power switch, humidity cycle light, and thermostat cycling light shall also be included.

ELECTRICAL CHARACTERISTICS. 3 wire grounded tri-directional power cord and plug, rear mounted for safety. See electrical data chart above for amperage and receptacle configuration. See electrical chart for models that require a dedicated circuit.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.

LITERATURE

FWE products may be covered under one or more of the following U.S. patents: 288,299;238,300;3,952,609;4,192,991.
